SEAT BELT - FRONT - 3 DOOR

Service repair no - 76.73.13

Remove

  1. Remove seat base finisher. See BODY, Seats and seat belts.
  2. Remove body side rear trim casing. See BODY, Interior trim components.

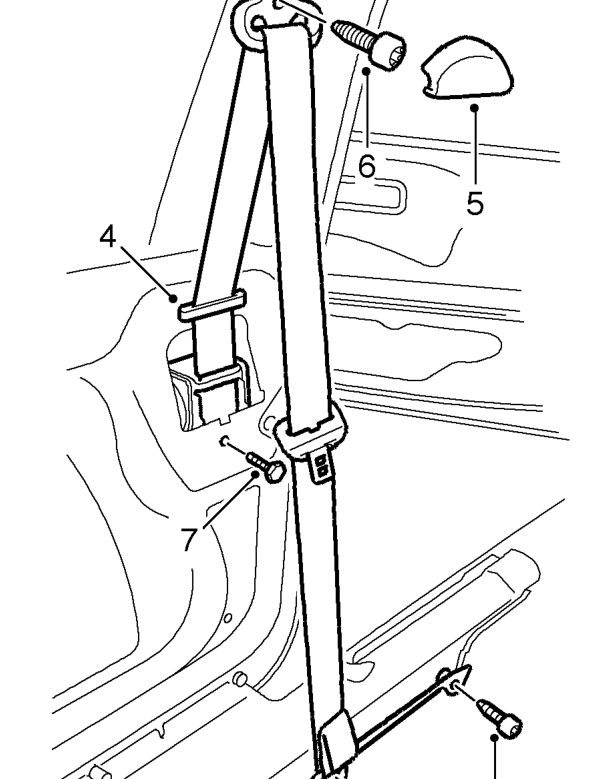

Seat belt - front - 3 door – Remove body side rear trim casing. See BODY, Interior trim components.
  1. Remove 2 Torx bolts securing seat belt lower mounting and remove mounting from seat belt.
  2. Release seat belt retaining strap.
  3. Remove cover from upper mounting.
  4. Remove Torx bolt from upper mounting.
  5. Remove bolt from seat belt reel and remove reel.

Refit

  1. Position reel and tighten bolt to 31 Nm.
  2. Extend belt, position top mounting and tighten Torx bolt to 31 Nm.
  3. Fit top mounting cover.
  4. Secure belt retaining strap.
  5. Fit lower mounting to seat belt, position mounting, fit and tighten Torx bolts to 40 Nm.
  6. Fit trim casing. See BODY, Interior trim components.
  7. Fit seat base finisher. See BODY, Seats and seat belts.
