Land Rover Freelander Workshop Manual (1998-2000)23 · Restraint systems
23 · Body & interior

Airbag - passenger

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Airbag - passenger
Restraint systemsAirbag - passenger

Refit

NOTE: If the airbag module is to be replaced, the bar code of the new module must be recorded.

  1. Position airbag module and make connection with harness upwards as shown in illustration.
  2. Fit airbag to steering wheel and hand start the 2 Torx screws. Tighten screws to 9 Nm.
  3. Connect battery leads, earth lead last.

AIRBAG - PASSENGER

Service repair no - 76.74.02

Remove

WARNING: See GENERAL INFORMATION, SRS Precautions.

  1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.

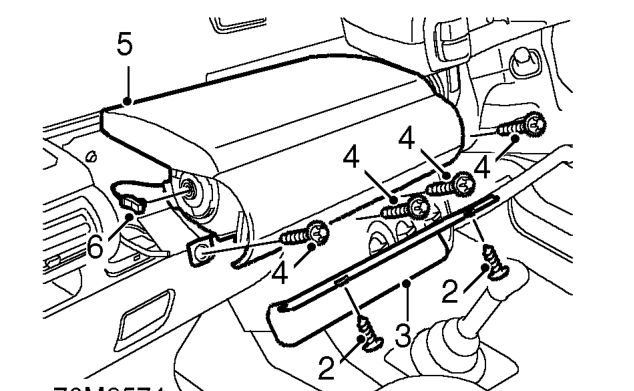

Airbag - passenger – Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.
  1. Remove 2 screws securing airbag lower finisher.
  2. Remove finisher.
  3. Remove 4 Torx screws securing airbag to fascia.
  4. Release airbag from fascia.

CAUTION: Do not allow the airbag module to hang by the harness.

  1. Disconnect multiplug holder and multiplug from airbag.
  2. Remove airbag.

WARNING: Store the airbag module in accordance with the storage procedures. See GENERAL INFORMATION, SRS Precautions.
