SEAT BELT - FRONT - 5 DOOR

Service repair no - 76.73.13

Remove

  1. Remove seat base finisher. See BODY, Seats and seat belts.
  2. Remove ’B/C’ post upper finisher. See BODY, Interior trim components.

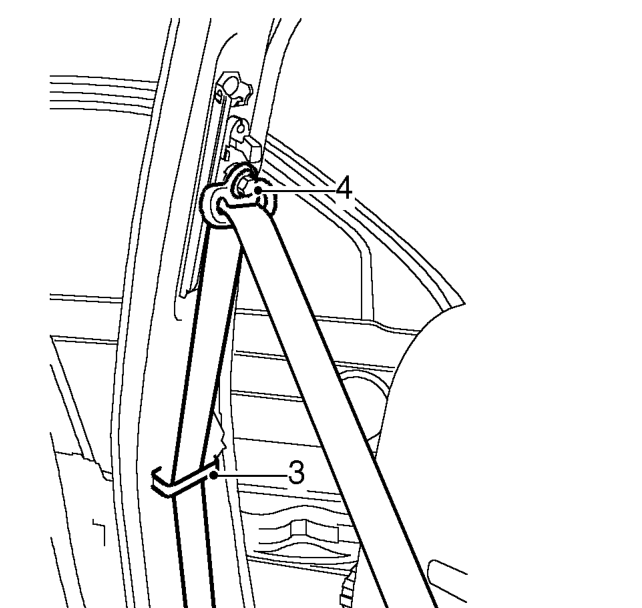

Seat belt - front - 5 door – Remove ’B/C’ post upper finisher. See BODY, Interior trim components.
  1. Release seat belt retaining strap.
  2. Remove nut from seat belt upper mounting.
  3. Remove bolt from seat belt reel and remove reel.

Refit

  1. Position reel and tighten bolt to 31 Nm.
  2. Extend belt, position top mounting and tighten nut to 31 Nm.
  3. Secure belt retaining strap.
  4. Fit ’B/C’ post upper finisher. See BODY, Interior trim components.
  5. Fit seat base finisher. See BODY, Seats and seat belts.
