Land Rover Freelander Workshop Manual (1998-2000)24 · Body
24 · Body & interior

Seat - front

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Seats and seat belts › Seat - front
BodySeat - front

SEAT - FRONT

Service repair no - 78.10.44/99

WARNING: See GENERAL INFORMATION, SRS Precautions.

Remove

  1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.
  2. Remove seat base finisher. See this section.

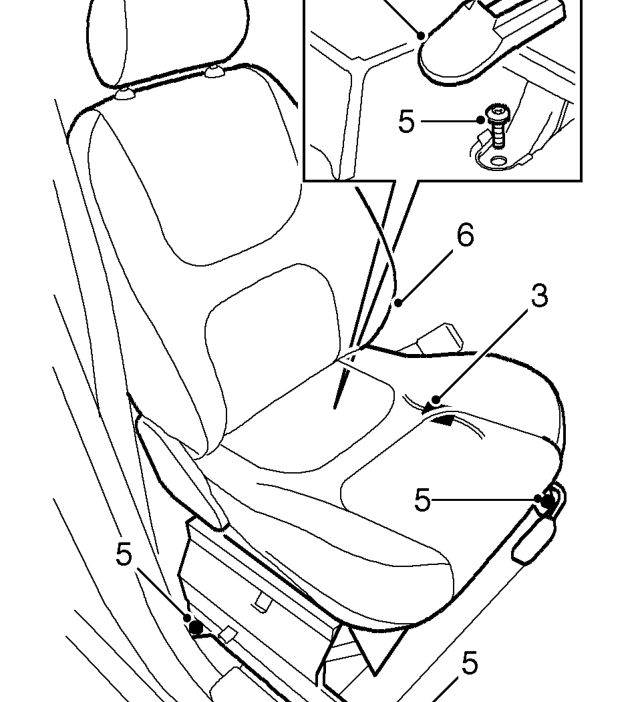

Seat - front – Remove seat base finisher. See this section.
  1. Release pretensioner multiplug from seat frame. Disconnect pretensioner multiplug.
  2. Remove cover from rear securing bolt.
  3. Remove 4 Torx screws securing seat.
  4. Remove seat.

Refit

  1. Position seat and secure with screws. Tighten screws to 45 Nm.
  2. Fit cover to rear bolt.
  3. Connect pretensioner multiplug. Secure pretensioner multiplug to seat frame.
  4. Fit seat base finisher. See this section.
