BodyLatch assembly - rear squab - RH

LATCH ASSEMBLY - REAR SQUAB - RH

Service repair no - 78.80.05

Remove

  1. Remove rear seat squab cover. See this section.

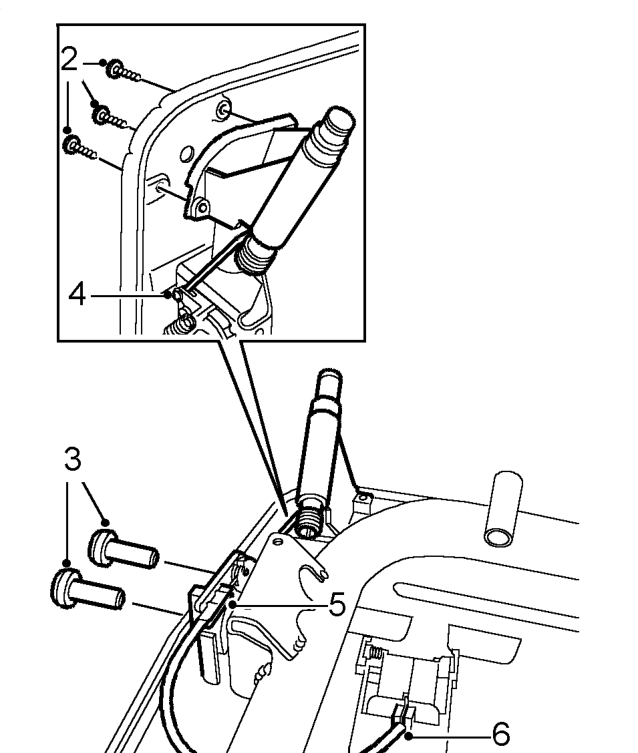

Latch assembly - rear squab - rh – Remove rear seat squab cover. See this section.
  1. Remove 3 screws from lock button.
  2. Remove 2 Torx screws from squab lock.
  3. Release lock button from lock.
  4. Release cable from abutment and remove from lock.
  5. Release cable from lever abutment and remove from lever.

Refit

  1. Position cable to lever and locate in abutment.
  2. Fit cable to lock and locate in abutment.
  3. Fit lock button to lock.
  4. Fit Torx screws to squab lock and tighten to 20 Nm. .
  5. Fit screws to lock button.
  6. Fit squab cover. See this section.

LATCH ASSEMBLY - REAR SQUAB - LH

Service repair no - 78.80.16

Remove

  1. Remove rear seat squab cover. See this section.

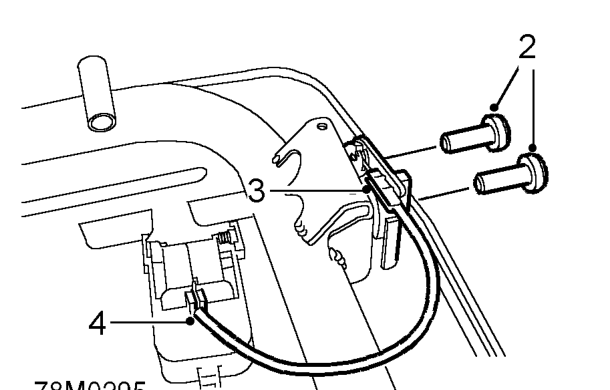

Latch assembly - rear squab - lh – Remove rear seat squab cover. See this section.
  1. Remove 2 Torx screws from squab lock.
  2. Release cable from abutment and remove from lock.
  3. Release cable from lever abutment and remove from lever.

Refit

  1. Position cable to lever and locate in abutment.
  2. Fit cable to lock and locate in abutment.
  3. Fit and tighten Torx screws to lock.
  4. Fit squab cover. See this section.
