FINISHER - CUSHION SIDE - FRONT SEAT

Service repair no - 78.55.06

Remove

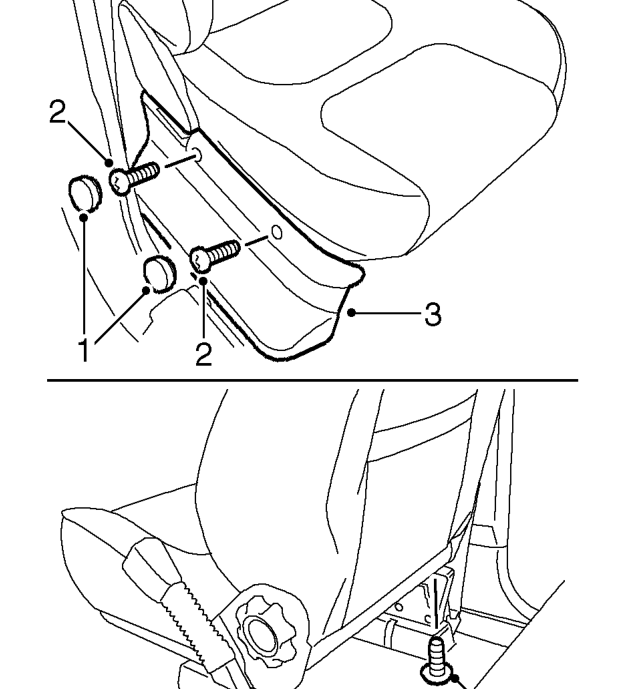

Finisher - cushion side - front seat – Service repair no - 78.55.06
  1. Remove 2 covers to access screws.
  2. Remove 3 screws securing finisher.
  3. Release catches at front and side of seat and remove finisher.

Refit

  1. Position finisher to seat, locate catches, fit and tighten securing screws.
  2. Fit screw covers.

LUMBAR SUPPORT - FRONT SEAT

Service repair no - 78.60.07

Remove

  1. Remove front seat. See this section.

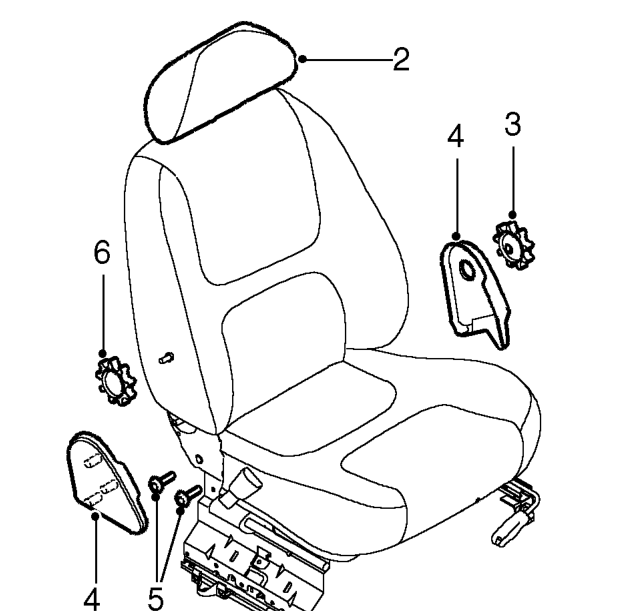

Lumbar support - front seat – Remove front seat. See this section.
  1. Release and remove head restraint.
  2. Remove recline control knob.
  3. Release retaining studs from side covers and remove covers.
  4. Remove 4 Torx bolts from squab frame and remove squab frame from cushion frame.
  5. Remove lumbar control knob.

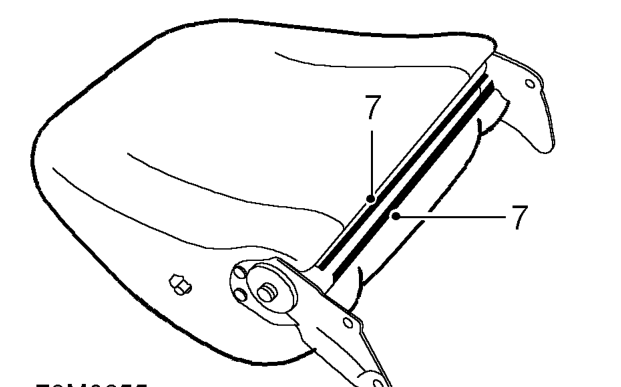

Lumbar support - front seat – Remove lumbar control knob.
  1. Release squab cover at base of seat frame.
