SQUAB COVER - FRONT SEAT

Service repair no - 78.90.08

Remove

  1. Remove front seat. See this section.

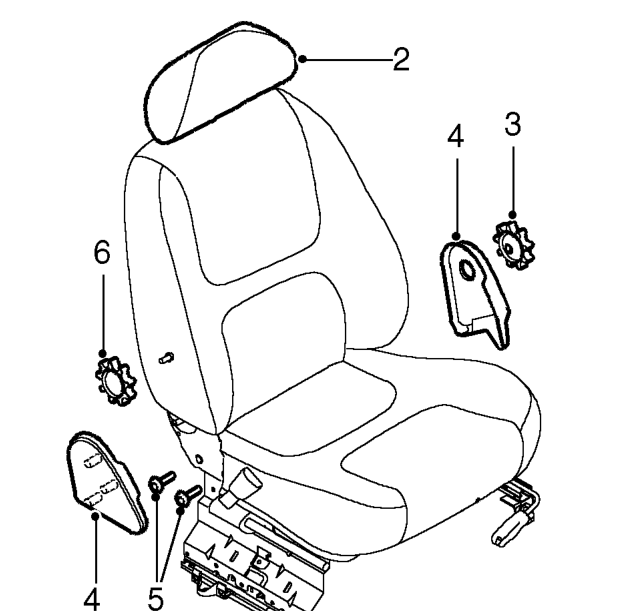

Squab cover - front seat – Remove front seat. See this section.
  1. Release and remove head restraint.
  2. Remove recline control knob.
  3. Release retaining studs from side covers and remove covers.
  4. Remove 4 Torx bolts from squab frame and remove squab frame from cushion frame.
  5. Remove lumbar control knob.

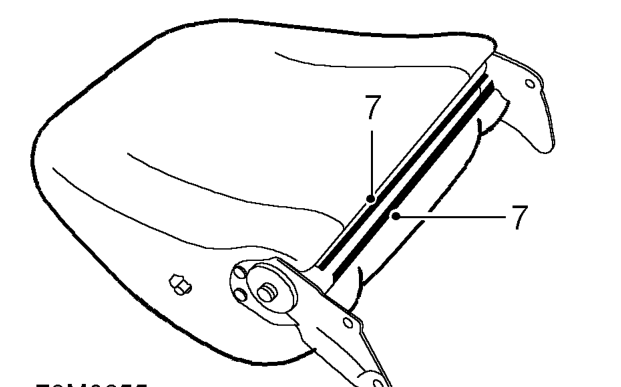

Squab cover - front seat – Remove lumbar control knob.
  1. Release squab cover at base of seat frame.

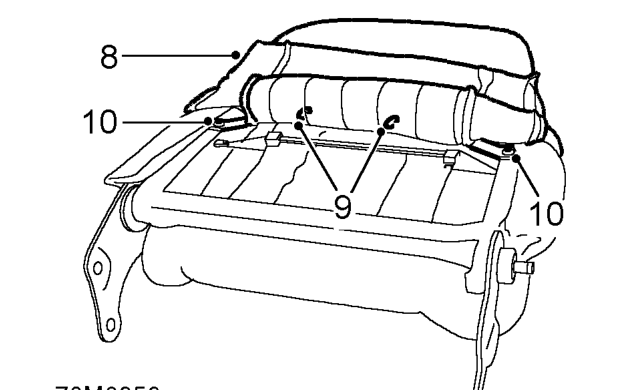

Squab cover - front seat – Release squab cover at base of seat frame.
  1. Release squab cover from squab frame and squab pad.
  2. Remove and discard 2 hog rings from rear of cover.
  3. Drill out 2 pop rivet from squab frame.

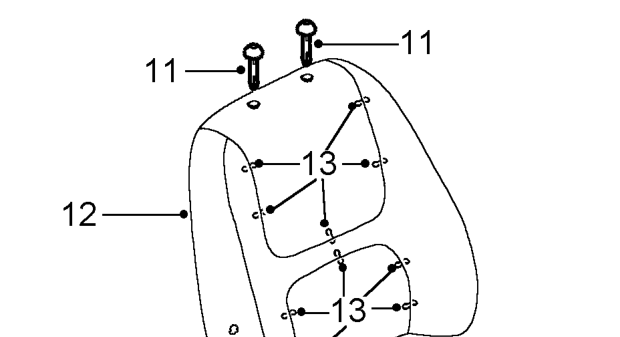

Squab cover - front seat – Drill out 2 pop rivet from squab frame.
  1. Remove head restraint guide tubes.
  2. Remove squab cover and pad from frame.
  3. Remove and discard 10 hog rings holding cover to squab pad.
  4. Remove squab cover.
