CUSHION COVER - REAR SEAT - 3 DOOR

Service repair no - 78.40.05

Remove

  1. Remove rear seat assembly. See this section.

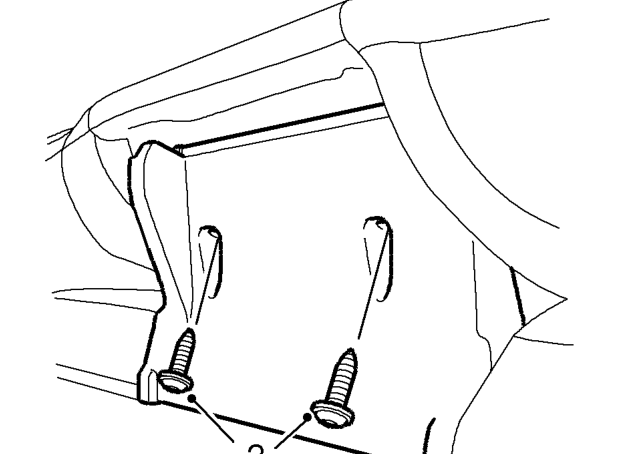

Cushion cover - rear seat - 3 door – Remove rear seat assembly. See this section.
  1. Remove 2 screws securing console cover and remove cover.

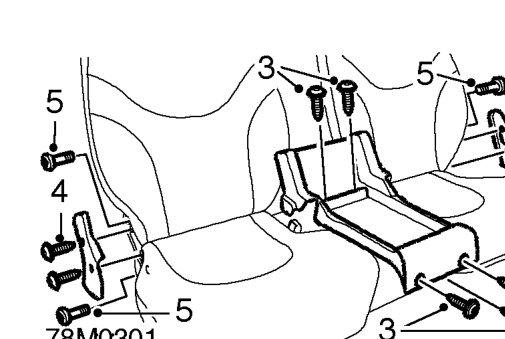

Cushion cover - rear seat - 3 door – Remove 2 screws securing console cover and remove cover.
  1. Remove 4 screws securing rear seat console and remove console.
  2. Remove 4 screws securing end covers and remove covers.
  3. Remove 4 Torx bolts and remove squab assembly from cushion assembly.

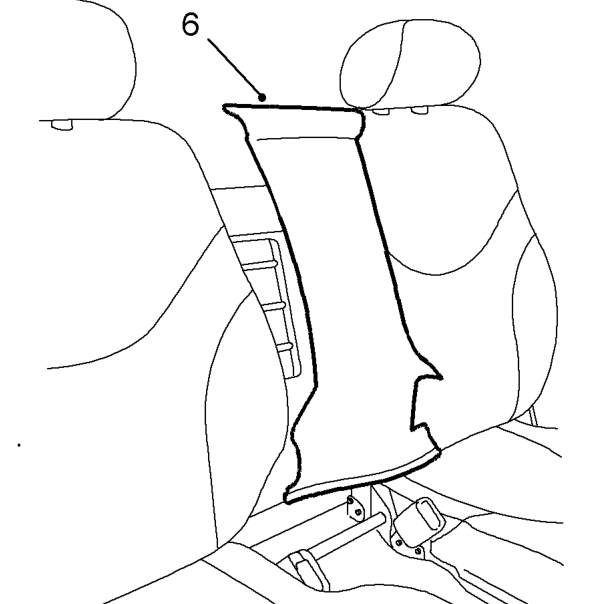

Cushion cover - rear seat - 3 door – Remove 4 Torx bolts and remove squab assembly from cushion assembly.
  1. Release back board assembly from squab frame and remove back board.

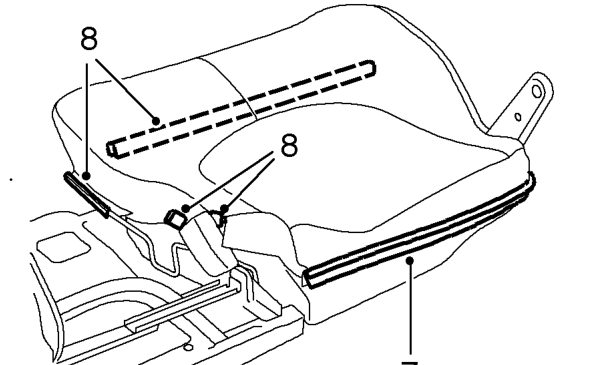

Cushion cover - rear seat - 3 door – Release back board assembly from squab frame and remove back board.
  1. Release rear of cushion cover from frame.
  2. Release sides and front of cushion cover from frame.
