Finisher - cushion side - front seat (page 2 of 2)

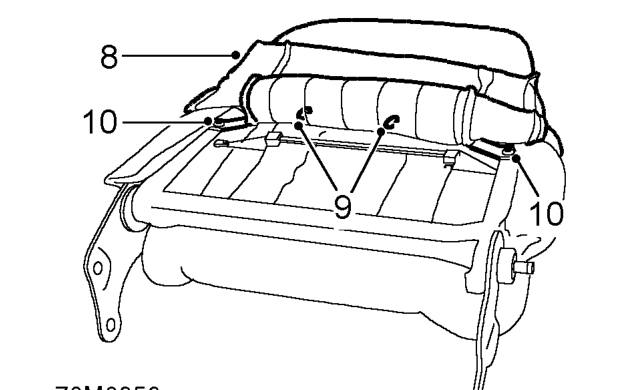

8. Release squab cover from squab frame and squab pad.
9. Remove and discard 2 hog rings from rear of cover.

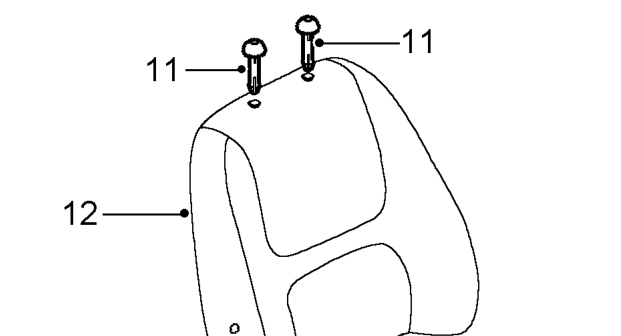

10. Drill out 2 pop rivet from squab frame.

11. Remove head restraint guide tubes.

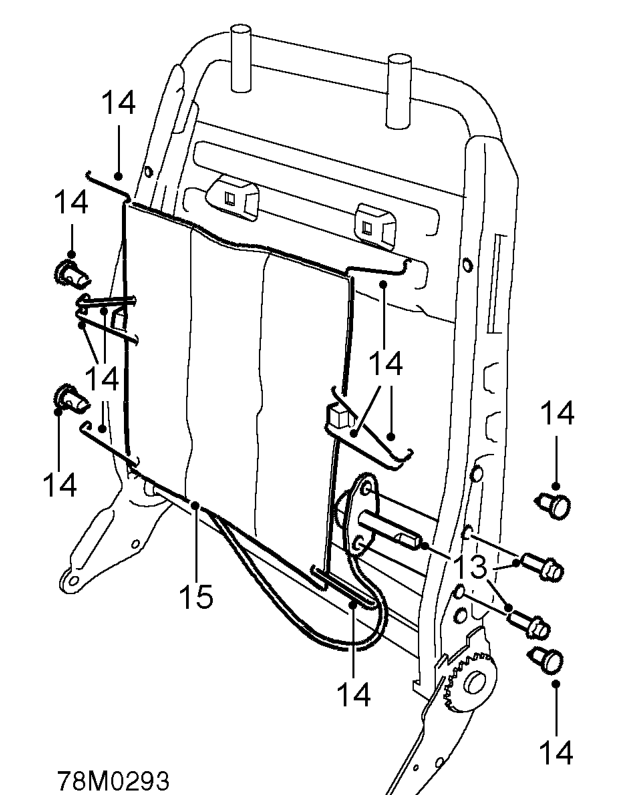

12. Remove squab cover and pad.

13. Remove 2 bolts from cable control and release cable control.
14. Release 8 lumbar support retainers from squab frame and collect 4 hook retainers
15. Remove lumbar support mechanism.

Refit

1. Position lumbar support to squab frame, locate hook retainers.
2. Fit lumbar support retainers to squab frame.
3. Position cable control and tighten bolts.
4. Fit squab cover and pad to frame.
5. Fit head restraint guide tubes.
6. Fit new hog rings to rear of cover.
7. Position straps and secure with pop rivets.
8. Fit squab cover to squab pad and frame.
9. Secure squab cover at base of frame.
10. Fit lumbar support control knob.
11. Fit squab frame to cushion frame and tighten Torx bolts to 45 Nm.
12. Fit side covers and secure retaining studs.
13. Fit head restraint.
14. Fit recline control knob.
15. Fit front seat. See this section.
