Land Rover Freelander Workshop Manual (1998-2000)23 · Restraint systems
23 · Body & interior

Adjustable mounting - seat belt - ’b/c’ post

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Adjustable mounting - seat belt - ’b/c’ post
Restraint systemsAdjustable mounting - seat belt - ’b/c’ post

ADJUSTABLE MOUNTING - SEAT BELT - ’B/C’ POST

Service repair no - 76.73.26

Remove

Adjustable mounting - seat belt - ’b/c’ post – Service repair no - 76.73.26

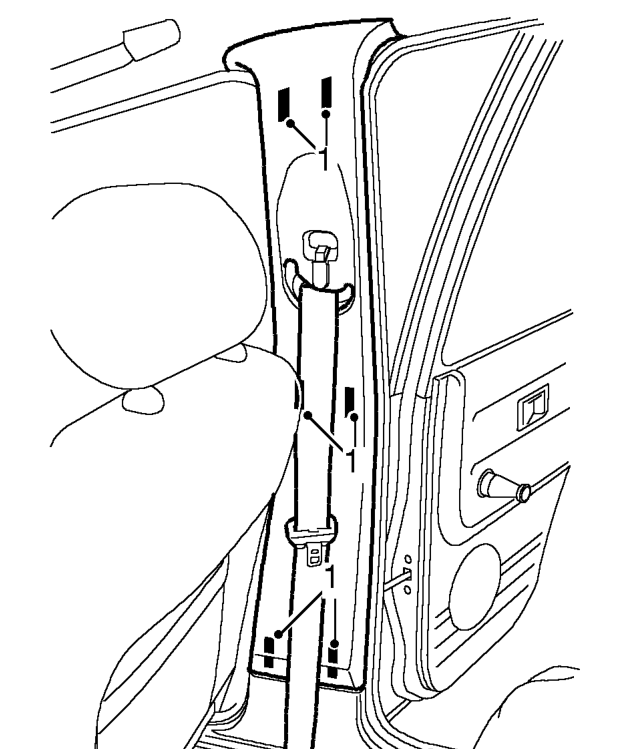

  1. Release ’B/C’ post upper finisher from 6 clips and position aside.
Adjustable mounting - seat belt - ’b/c’ post – Release ’B/C’ post upper finisher from 6 clips and position aside.

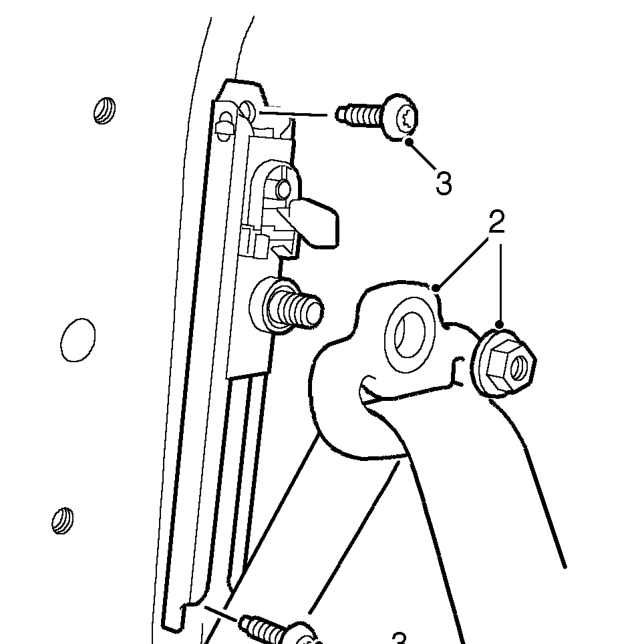

  1. Remove nut from seat belt upper mounting and remove belt bracket.
  2. Remove 2 Torx screws from mounting and remove mounting.

Refit

  1. Position mounting and tighten Torx screws to 26 Nm.
  2. Fit upper belt bracket and tighten nut to 31 Nm.
  3. Position ’B/C’ post upper finisher and secure with clips.
