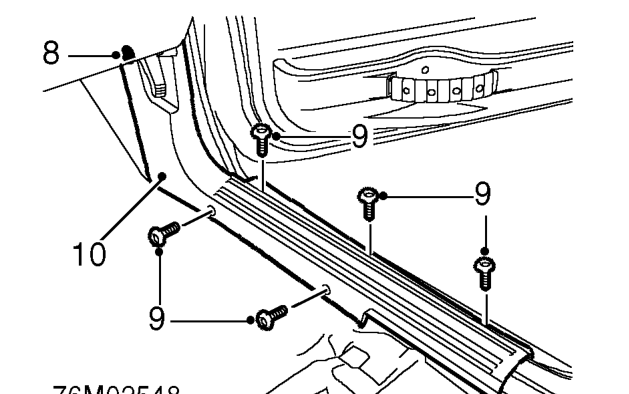

8. Remove scrivet from front of passenger side carpet retainer.
9. Remove 5 Torx screws from carpet retainer.
10. Remove carpet retainer.

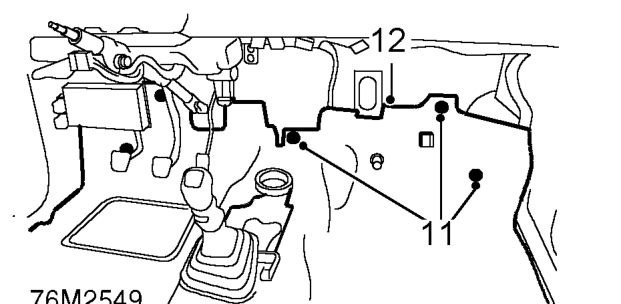

11. Remove 3 retainers securing carpet to bulkhead.

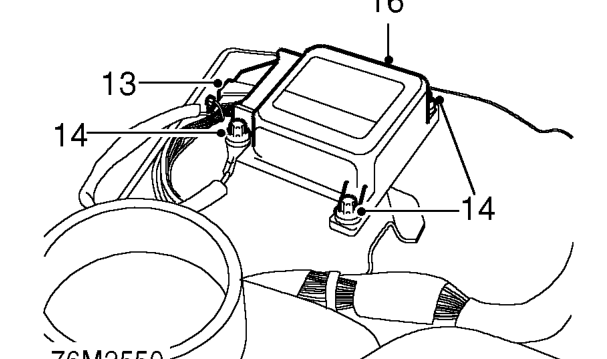

12. Pull carpet back for access to DCU.

13. Disconnect multiplug from DCU.
14. Remove 3 bolts securing DCU.
15. Release earth lead.
16. Remove DCU.

Refit

1. Fit DCU.
2. Fit earth lead and tighten bolts to 9 Nm.

WARNING: The vehicle crash sensor is incorporated inside the DCU, it is imperative that bolts securing the DCU are tightened to their correct torque.

3. Connect multiplug to DCU.
4. Fit carpet and secure to bulkhead.
5. Fit carpet retainer, fit and tighten Torx screws.
6. Fit scrivet to front of carpet retainer.

Models with air conditioning fitted

7. Fit air duct and pipe seal.
8. Fit evaporator assembly to drain hose and air intake.
9. Fit evaporator to studs and secure with nuts.
10. Connect multiplugs to air conditioning switches.
11. Fit NEW receiver drier. See AIR CONDITIONING, Repairs.

All models

12. Fit heater assembly. See HEATING & VENTILATION, Repairs.
13. Connect battery leads, earth lead last.
