SERVO - AIR RECIRCULATION

Service repair no - 80.10.18

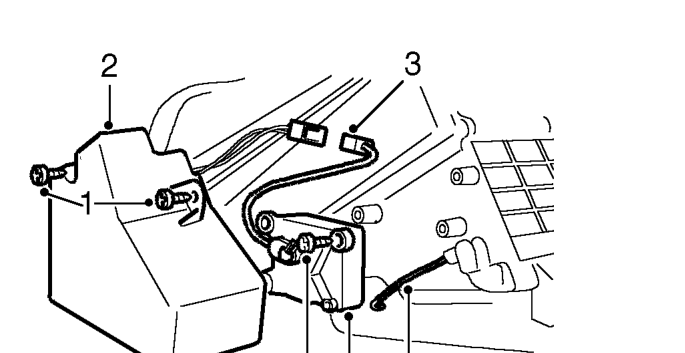

Remove

1. Remove 2 screws from servo cover.
2. Remove servo cover.
3. Release and disconnect servo multiplug.
4. Release operating rod.
5. Remove 3 screws from servo.
6. Remove servo.

Refit

1. Position servo, fit and tighten securing screws.
2. Connect operating rod.
3. Connect multiplug to servo.
4. Fit servo cover and secure with screws.
