Land Rover Freelander Workshop Manual (1998-2000)25 · Heating & ventilation
25 · Heating & A/C

Heater

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Heater
Heating & ventilationHeater

HEATER

Service repair no - 80.20.01

Remove

  1. Drain cooling system. See COOLING SYSTEM, Adjustments.
Heater – Drain cooling system. See COOLING SYSTEM, Adjustments.

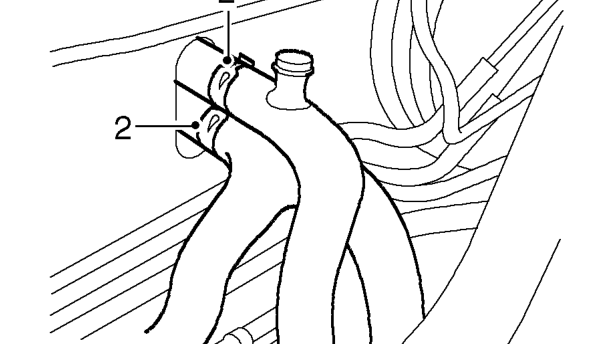

  1. Release hose clips and release heater hoses from heater pipes.
  2. Remove fascia assembly. See BODY, Interior trim components.
Heater – Remove fascia assembly. See BODY, Interior trim components.

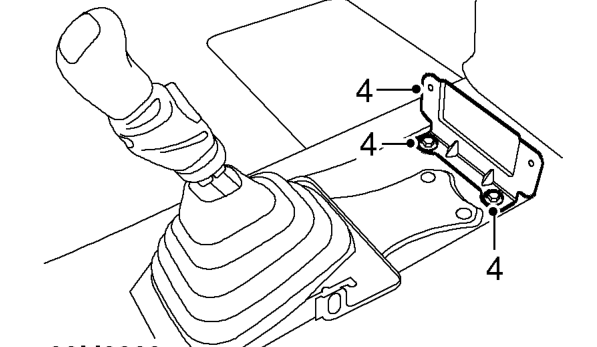

  1. Remove 2 bolts from console support bracket and remove bracket.
Heater – Remove 2 bolts from console support bracket and remove bracket.

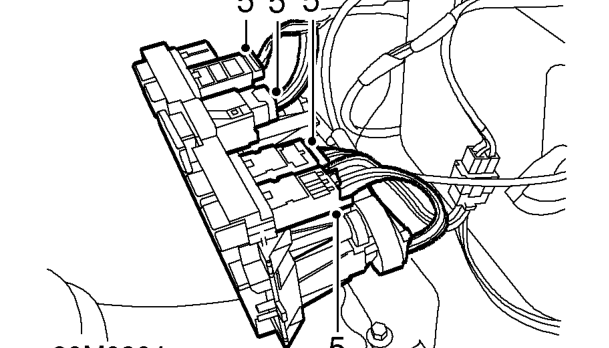

  1. Disconnect 4 multiplugs from heater control switch pack.
Heater – Disconnect 4 multiplugs from heater control switch pack.

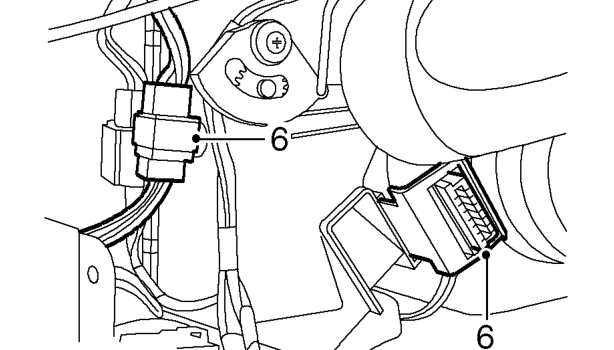

  1. Disconnect multiplug from heater and release diagnostic socket.

Models with A/C

  1. Disconnect multiplug from evaporator.
