Heating & ventilationSwitch - recirculation control

SWITCH - RECIRCULATION CONTROL

Service repair no - 80.10.21

Remove

  1. Remove radio. See ELECTRICAL, Repairs.
Switch - recirculation control – Remove radio. See ELECTRICAL, Repairs.

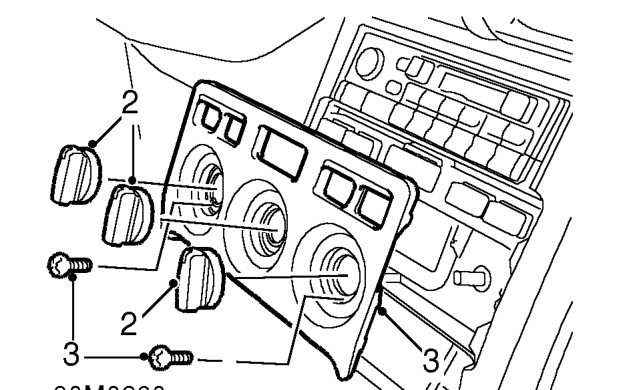

  1. Remove heater control knobs.
  2. Remove 2 screws and remove heater control face plate.
Switch - recirculation control – Remove 2 screws and remove heater control face plate.

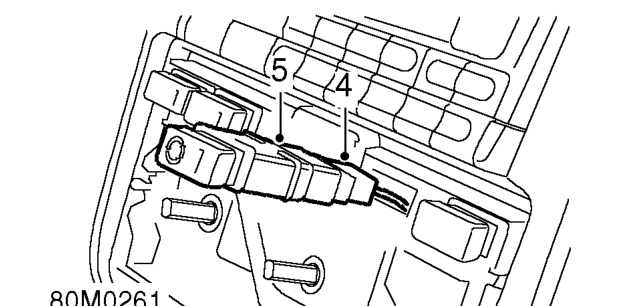

  1. Disconnect multiplug from switch.
  2. Remove switch from heater control mounting.

Refit

  1. Fit switch and connect multiplug.
  2. Fit heater control face plate and tighten screws.
  3. Fit heater control knobs.
  4. Fit radio. See ELECTRICAL, Repairs.
