MOTOR AND FAN ASSEMBLY

Service repair no - 80.20.12

Remove

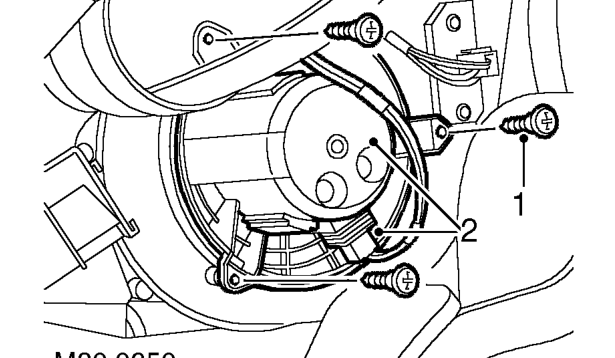

Motor and fan assembly – Service repair no - 80.20.12
  1. Remove 3 screws securing fan motor assembly to heater casing.
  2. Release fan assembly from heater and disconnect mutiplug.
  3. Remove fan assembly

Refit

  1. Position fan assembly to heater and connect multiplug.
  2. Align fan assembly to heater casing and secure with screws.

RESISTOR - FAN MOTOR

Service repair no - 80.20.17

Remove

  1. LHD Models Only: Remove air inlet connector hose.

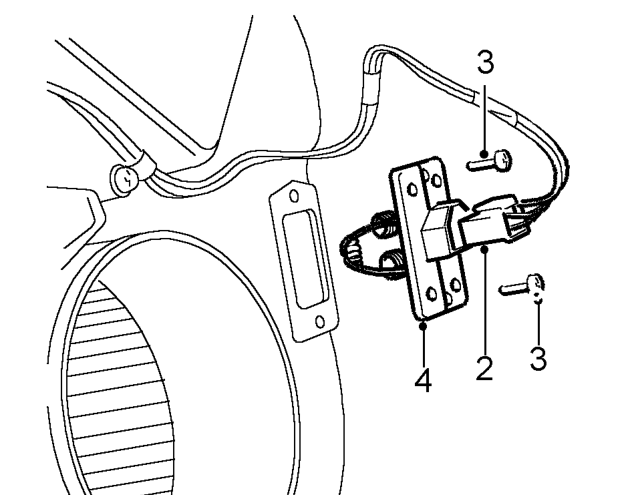

Resistor - fan motor – LHD Models Only: Remove air inlet connector hose.
  1. Disconnect multiplug from resistor.
  2. Remove 2 screws from resistor.
  3. Remove resistor from heater.

Refit

  1. Fit resistor to heater.
  2. Fit and tighten screws.
  3. Connect multiplug to resistor.
  4. LHD Models Only: Fit air inlet connector hose.
