Heating & ventilationSwitch - heater fan

SWITCH - HEATER FAN

Service repair no - 80.10.22

Remove

  1. Remove front console. See BODY, Interior trim components.
Switch - heater fan – Remove front console. See BODY, Interior trim components.

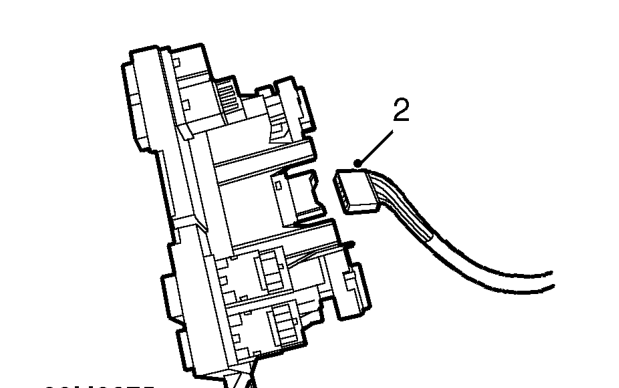

  1. Disconnect multiplug from switch.
Switch - heater fan – Disconnect multiplug from switch.

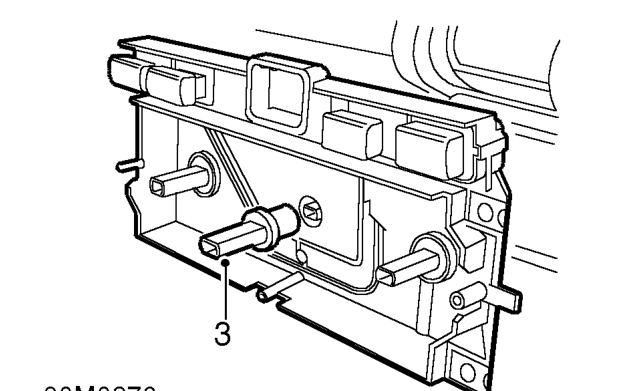

  1. Remove drive shaft from switch.
Switch - heater fan – Remove drive shaft from switch.

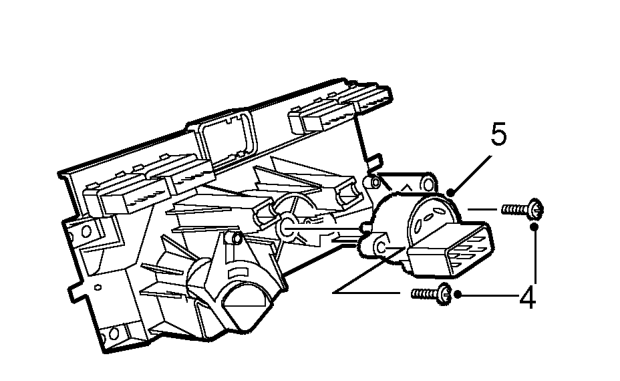

  1. Remove 2 screws securing switch.
  2. Remove switch.

Refit

  1. Fit switch and secure with screws.
  2. Fit drive shaft.
  3. Connect multiplug to switch.
  4. Fit front console. See BODY, Interior trim components.
