PLENUM - AIR INTAKE MOULDING

Service repair no - 80.15.62

Remove

  1. Remove wiper arms. See WIPERS & WASHERS, Repairs.

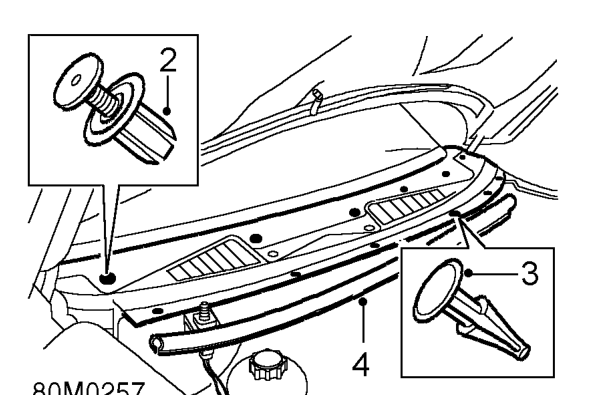

Plenum - air intake moulding – Remove wiper arms. See WIPERS & WASHERS, Repairs.
  1. Remove 6 studs securing rear edge of air intake moulding.
  2. Releases 6 studs securing front edge of moulding and bonnet sealing rubber to engine bulkhead. Remove air intake moulding and bonnet sealing rubber. Do not carry out further dismantling if component is removed for access only.
  3. Remove bonnet sealing rubber from air intake moulding.
  4. Position bonnet sealing rubber on replacement air intake moulding and secure with studs.

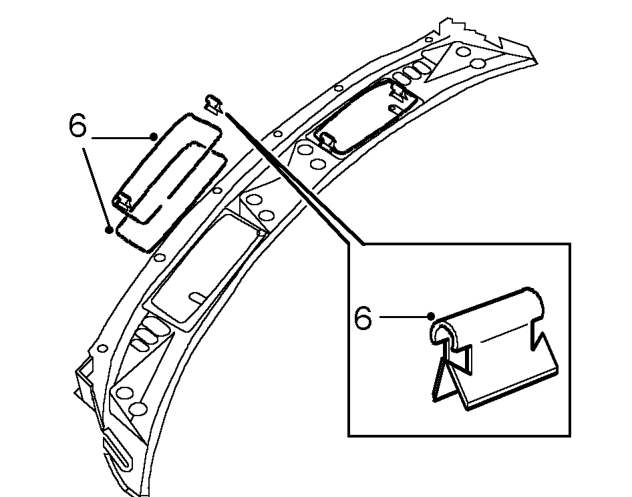

Plenum - air intake moulding – Position bonnet sealing rubber on replacement air intake moulding and secure with studs.
  1. Remove 4 clips securing air intake filter retainers. Remove retainers and filters.
  2. Fit filters and retainer to replacement air intake moulding. Fit clips to retainers.

Refit

  1. Position air intake moulding and secure with studs. Fit front studs first.
  2. Fit wiper arms. See WIPERS & WASHERS, Repairs.
