Heating & ventilationMatrix - heater

MATRIX - HEATER

Service repair no - 80.20.29

Remove

  1. Remove heater assembly. See this section.

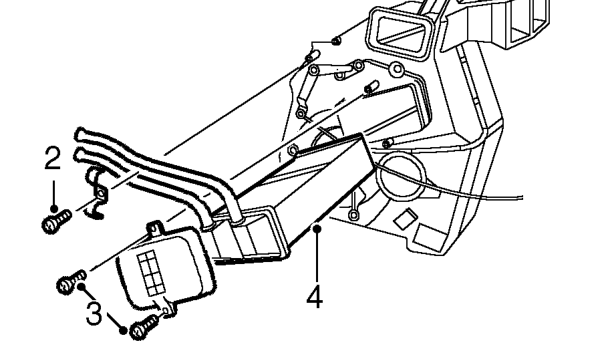

Matrix - heater – Remove heater assembly. See this section.
  1. Remove screw from pipe clamp and remove pipe clamp.
  2. Remove 2 screws from matrix cover and remove cover.
  3. Remove heater matrix.

Refit

  1. Fit heater matrix to heater body.
  2. Fit matrix cover and secure with screws.
  3. Fit pipe clamp and secure with screw.
  4. Fit heater assembly. See this section.
