RECEIVER DRIER

Service repair no - 82.17.02/03

Remove

  1. Disconnect battery earth lead.
  2. Recover refrigerant from A/C system. See Adjustments.

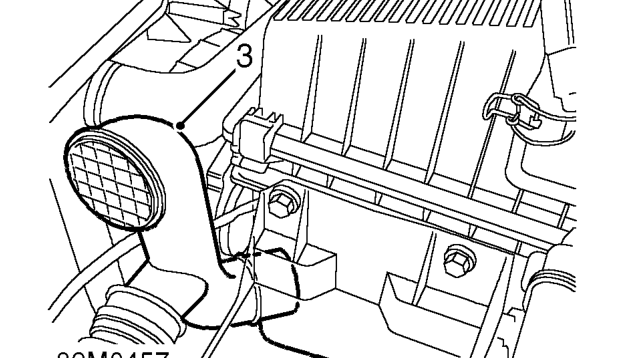

Receiver drier – Recover refrigerant from A/C system. See Adjustments.
  1. Disconnect air intake elbow from air cleaner assembly and resonator box, pipe.

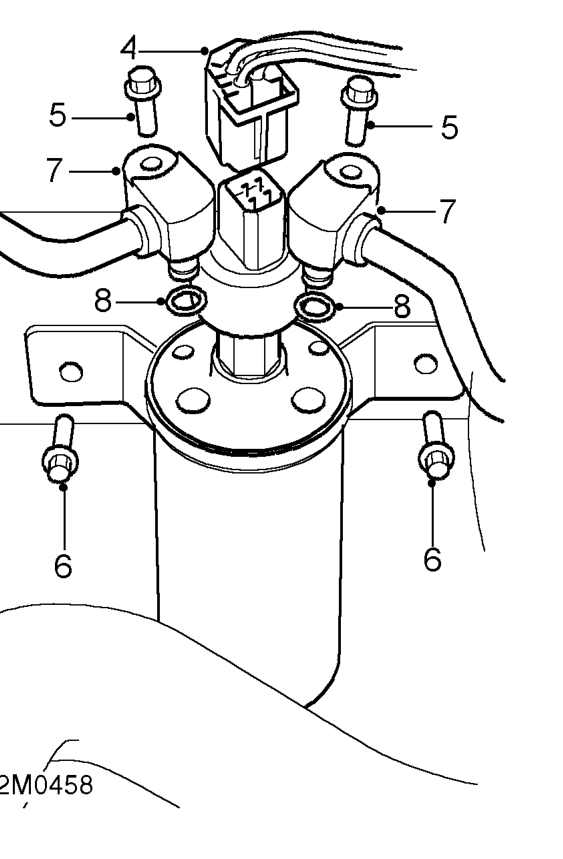

Receiver drier – Disconnect air intake elbow from air cleaner assembly and resonator box, pipe.
  1. Release multiplug from trinary switch.
  2. Remove 2 bolts from pipe unions.
  3. Remove 2 bolts from receiver drier bracket.
  4. Release pipe unions and discard receiver drier.
  5. Remove 1 ’O’ ring from each pipe union, discard ’O’ rings.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

Refit

  1. Lubricate NEW ’O’ rings with refrigerant oil and fit to pipe unions.
  2. Position NEW receiver drier to vehicle, fit and tighten bracket bolts.
  3. Fit pipe unions to receiver drier, fit and tighten bolts to 7 - 10 Nm.
  4. Fit multiplug to trinary switch.
  5. Fit air intake elbow.
  6. Recharge A/C system. See Adjustments.
  7. Connect battery earth lead.
