THERMOSTATIC EXPANSION VALVE (TXV)

Service repair no - 82.25.01

Remove

  1. Remove receiver drier. See this section.

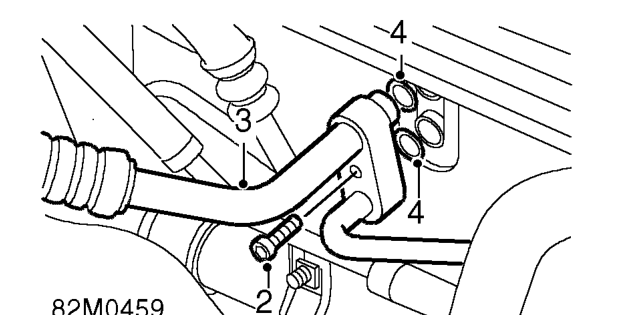

Thermostatic expansion valve (txv) – Remove receiver drier. See this section.
  1. Remove bolt securing pipe to evaporator.
  2. Release pipe from evaporator.
  3. Remove and discard 2 ’O’ rings.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

  1. Remove fascia. See BODY, Interior trim components.

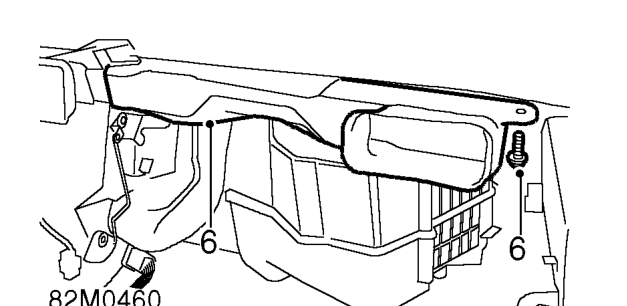

Thermostatic expansion valve (txv) – Remove fascia. See BODY, Interior trim components.
  1. Remove bolt from face level ducting, and remove ducting.

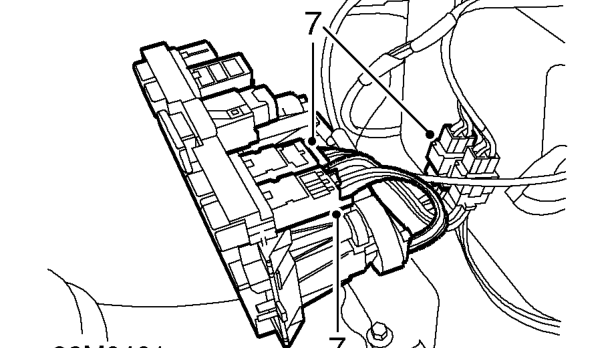

Thermostatic expansion valve (txv) – Remove bolt from face level ducting, and remove ducting.
  1. Disconnect 3 multiplugs from air conditioning switches and heater harness.

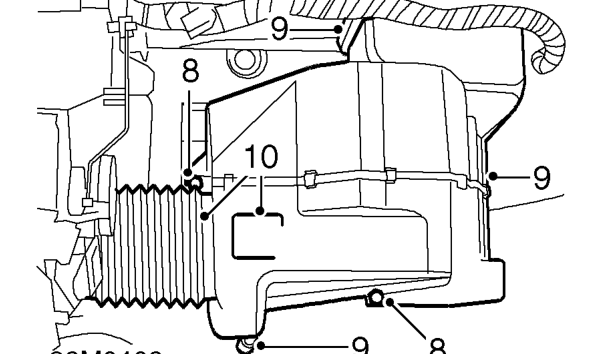

Thermostatic expansion valve (txv) – Disconnect 3 multiplugs from air conditioning switches and heater harness.
  1. Remove 2 nuts securing evaporator to body.
  2. Release evaporator from drain hose and air intake, remove evaporator assembly.
  3. Collect air duct and pipe seal.

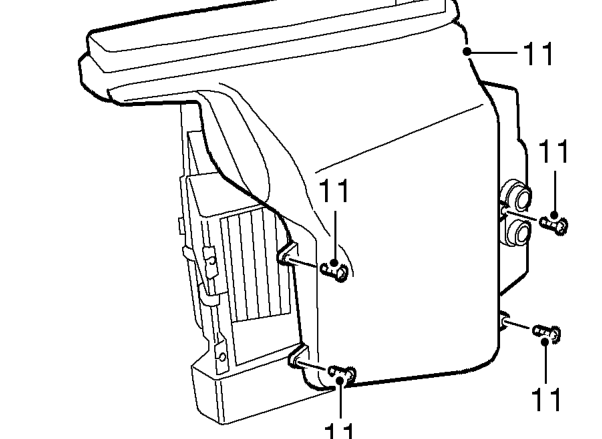

Thermostatic expansion valve (txv) – Collect air duct and pipe seal.
  1. Remove 4 screws from air ducting and remove ducting.
