Air conditioningEvaporator · page 1 of 3

EVAPORATOR

Service repair no - 82.25.20

The procedure for renewing the evaporator is identical to renewing the thermostatic expansion valve (TXV). See this section.

THERMOSTAT - EVAPORATOR

Service repair no - 82.25.50

Remove

  1. Remove receiver drier. See this section.

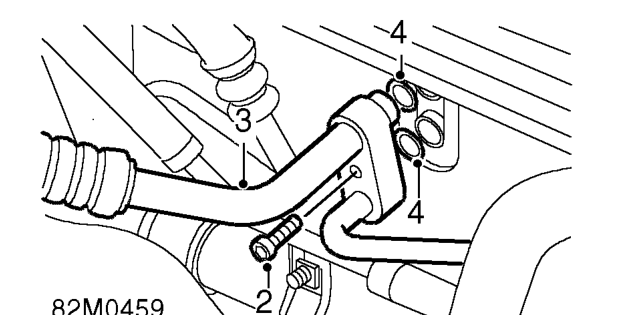

Thermostat - evaporator – Remove receiver drier. See this section.
  1. Remove bolt securing pipe to evaporator.
  2. Release pipe from evaporator.
  3. Remove and discard 2 ’O’ rings.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

  1. Remove fascia. See BODY, Interior trim components.

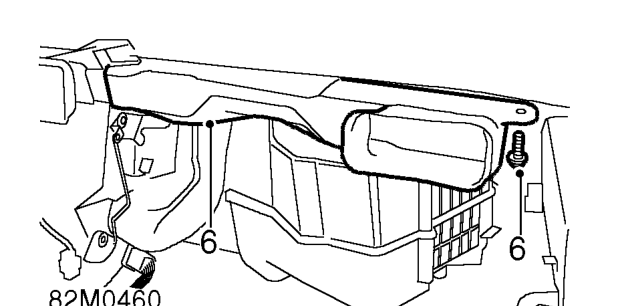

Thermostat - evaporator – Remove fascia. See BODY, Interior trim components.
  1. Remove bolt from face level ducting, and remove ducting.
