Evaporator (page 3 of 3)

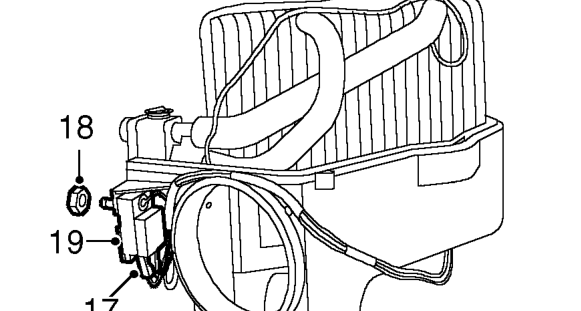

17. Disconnect Lucars from thermostat.
18. Remove nut from thermostat.
19. Remove thermostat complete with sensor pipe.

Refit

1. Locate thermostat pipe and secure to evaporator matrix.
2. Position thermostat and tighten nut.
3. Connect Lucars to thermostat.
4. Fit insulation to evaporator matrix.
5. Fit top half of evaporator casing.
6. Fit screws to casing.
7. Fit clips to casing.
8. Fit air ducting.
9. Fit and tighten ducting screws.
10. Position air duct and pipe seal.
11. Locate evaporator assembly to drain hose and air intake, position evaporator to body.
12. Fit and tighten securing nuts.
13. Connect multiplugs to heater harness and air conditioning switches.
14. Fit face level vent ducting, fit and tighten bolt.
15. Fit fascia. See BODY, Interior trim components.
16. Remove plugs from evaporator pipe.
17. Clean evaporator pipe.
18. Lubricate NEW ’O’ rings with refrigerant oil.
19. Fit ’O’ rings to evaporator pipe.
20. Position evaporator pipe to evaporator, fit and tighten bolt.
21. Fit receiver drier. See this section.
