Land Rover Freelander Workshop Manual (1998-2000)26 · Air conditioning
26 · Heating & A/C

Switch - control

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Switch - control
Air conditioningSwitch - control

SWITCH - CONTROL

Service repair no - 82.20.07

Remove

  1. Remove radio. See ELECTRICAL, Repairs.

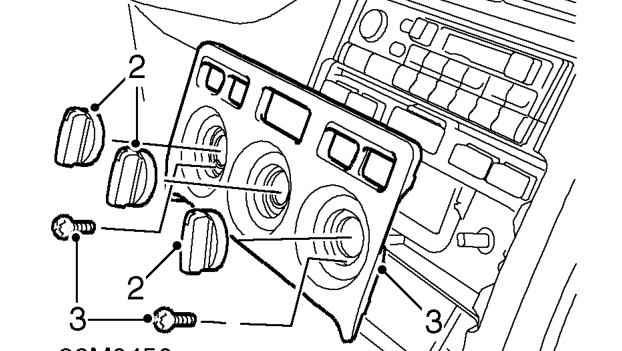

Switch - control – Remove radio. See ELECTRICAL, Repairs.
  1. Remove heater control knobs.
  2. Remove 2 screws and remove heater control face plate.

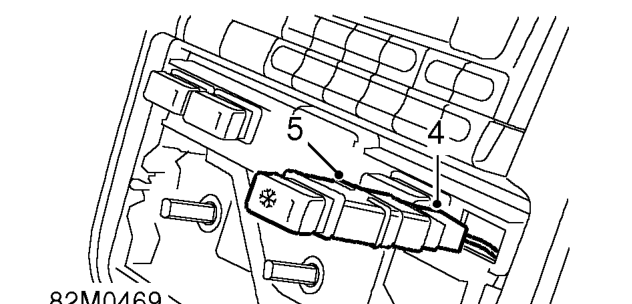

Switch - control – Remove 2 screws and remove heater control face plate.
  1. Disconnect multiplug from air conditioning control switch.
  2. Remove switch from heater control mounting.

Refit

  1. Fit switch and connect multiplug.
  2. Fit heater control face plate and tighten screws.
  3. Fit heater control knobs.
  4. Fit radio. See ELECTRICAL, Repairs.
