Air conditioningCondenser

CONDENSER

Service repair no - 82.15.07

Remove

  1. Disconnect battery earth lead.
  2. Recover refrigerant from A/C system. See Adjustments.
  3. Remove front bumper. See BODY, Exterior fittings.

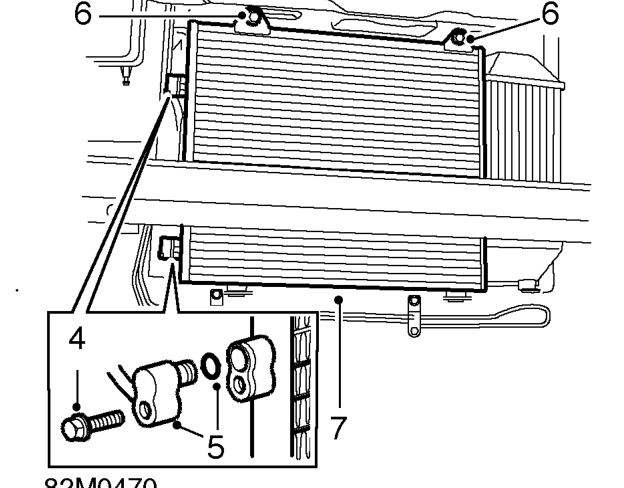

Condenser – Remove front bumper. See BODY, Exterior fittings.
  1. Remove 2 bolts securing A/C pipes to condenser.
  2. Release pipes from condenser, remove and discard ’O’ rings.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

  1. Remove 2 bolts securing condenser to upper mounting brackets.
  2. Remove condenser.

Refit

  1. Clean condenser and pipe connections.
  2. Position condenser and tighten bolts to 9 Nm.
  3. Lubricate NEW ’O’ rings with refrigerant oil and fit to condenser pipes.
  4. Position A/C pipes to condenser, fit bolts and tighten to 7 - 10 Nm.
  5. Fit NEW receiver drier. See this section.
  6. Fit front bumper. See BODY, Exterior fittings.
  7. Recharge A/C system. See Adjustments.
  8. Connect battery earth lead.
