Restraint systemsSeat belt buckle - centre - rear - 5 door · page 1 of 2

Refit

NOTE: If the pretensioner is to be replaced, the bar code of the new pretensioner must be recorded.

  1. Position pretensioner in seat location and tighten Torx bolt to 32 Nm.
  2. Connect and secure pretensioner multiplug.
  3. Fit rear console. See BODY, Interior trim components.
  4. Connect battery leads, earth lead last.
  5. Carry out system check by turning the ignition on and checking that the SRS warning lamp illuminates, then extinguishes after approximately 5 seconds.

SEAT BELT BUCKLE - CENTRE - REAR - 5 DOOR

Service repair no - 76.73.98

Remove

  1. Remove RH rear seat. See BODY, Seats and seat belts.
Seat belt buckle - centre - rear - 5 door – Remove RH rear seat. See BODY, Seats and seat belts.

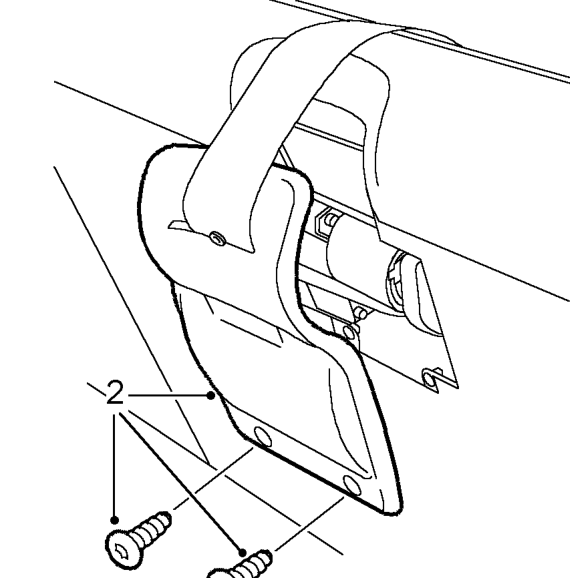

  1. Remove 2 screws and remove seat belt reel cover.
