ALTERNATOR - ’K’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 86.10.02

Remove

  1. Disconnect battery earth lead.
Alternator - ’k’ series without air conditioning – Disconnect battery earth lead.

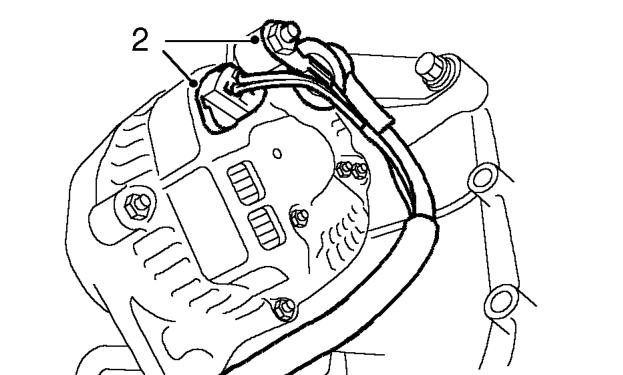

  1. Disconnect multiplug from alternator. Remove nut and disconnect battery cable from alternator.
  2. Remove alternator drive belt. See this section.
Alternator - ’k’ series without air conditioning – Remove alternator drive belt. See this section.

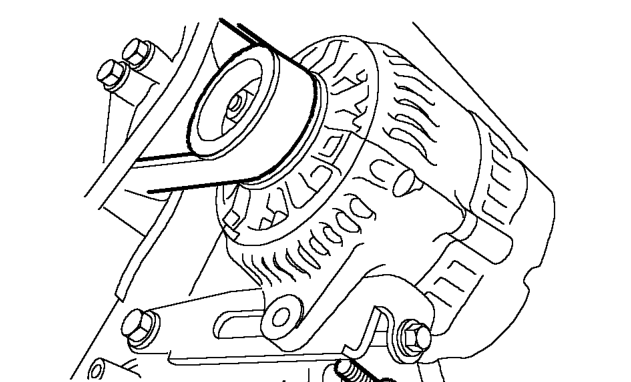

  1. Remove bolt securing alternator to adjusting link.
Alternator - ’k’ series without air conditioning – Remove bolt securing alternator to adjusting link.

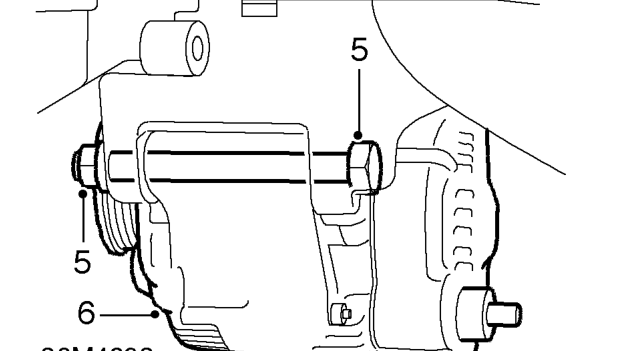

  1. Remove nut and bolt from alternator top mounting.
  2. Gently tap alternator on rear of upper lug to free slip bush, release alternator from mounting and remove alternator from vehicle.

Refit

  1. Position alternator to engine.
  2. Fit nut and bolt securing alternator to top mounting and tighten sufficiently to clamp slip bush onto alternator.
  3. Fit bolt securing alternator to adjusting link, but do not tighten at this stage.
  4. Fit alternator drive belt. See this section.
  5. Connect battery cable to alternator and secure with nut. Tighten nut to 4 Nm.
  6. Connect multiplug to alternator.
  7. Connect battery earth lead.
