Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

All models:

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › All models:
ElectricalAll models: · page 1 of 2
Diagram

All models:

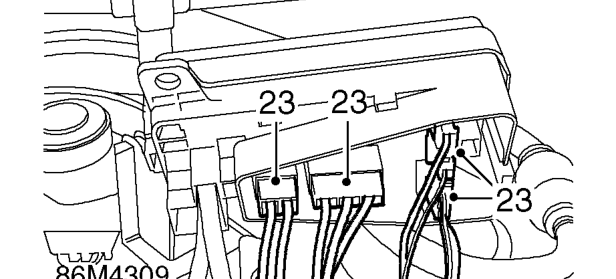

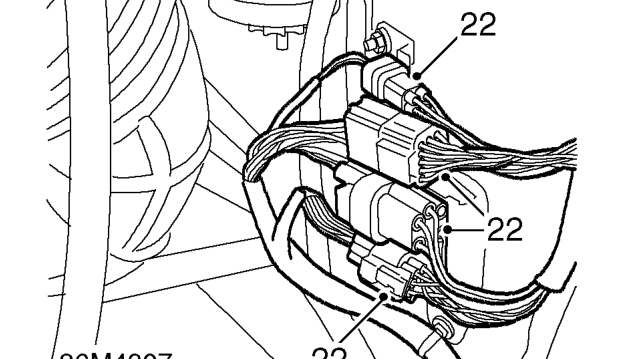

  1. Disconnect 4 multiplugs from engine harness.
All models: – Disconnect 4 multiplugs from engine harness.
  1. Disconnect 4 multiplugs from fuse box.
All models: – Disconnect 4 multiplugs from fuse box.

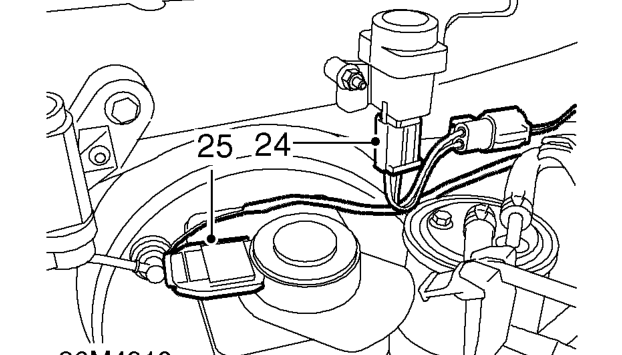

  1. Disconnect multiplug from inertia fuel shut-off switch.
  2. Disconnect multiplug from brake fluid level switch.
All models: – Disconnect multiplug from brake fluid level switch.

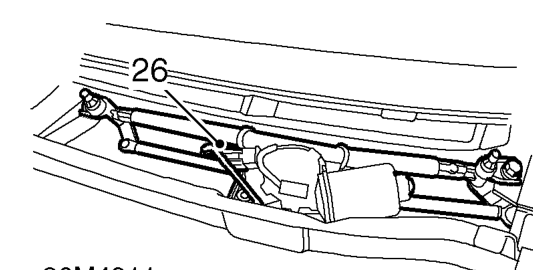

  1. Disconnect multiplug from wiper motor and pull into engine bay.
All models: – Disconnect multiplug from wiper motor and pull into engine bay.

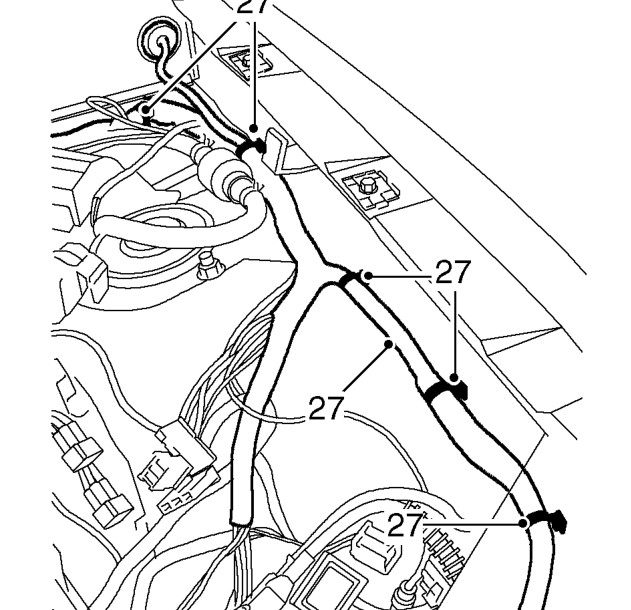

  1. Release 5 harness clips from LH inner wing.
  2. With assistance pull main harness into vehicle interior.
  3. Remove 6 screws from front mudflaps and remove mudflaps.
  4. Release rear edge of front wing liner.
  5. Release side repeater lamps, disconnect multiplugs and remove lamps.
