ElectricalRelay - main

RELAY - MAIN

Service repair no - 86.55.08

Remove

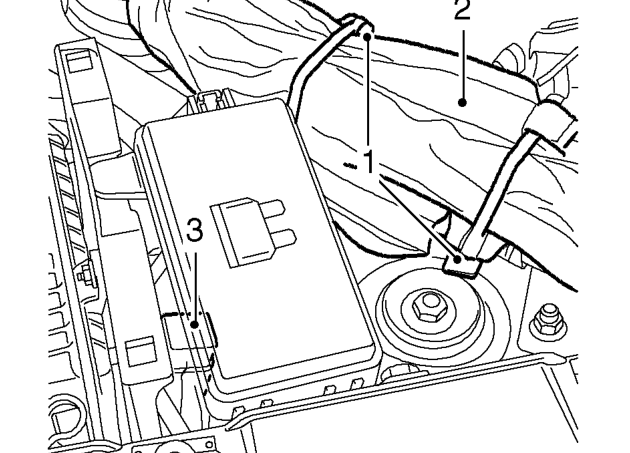

Relay - main – Service repair no - 86.55.08
  1. Remove 2 straps securing vehicle jack.
  2. Remove jack.
  3. Remove relay from holder on battery tray.

Refit

  1. Fit relay.
  2. Position vehicle jack to its mounting.
  3. Fit securing straps.

RELAY MODULE

Service repair no - 86.55.72

Remove

  1. Disconnect battery earth lead.

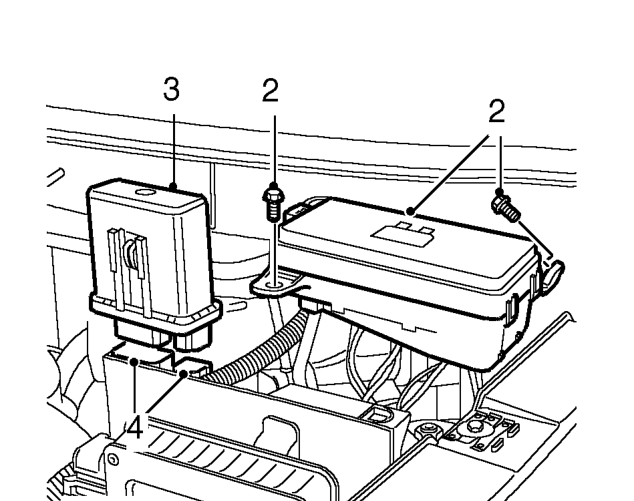

Relay module – Disconnect battery earth lead.
  1. Remove 2 bolts and position engine compartment fuse box aside.
  2. Release relay module from mounting bracket.
  3. Disconnect 2 multiplugs from relay module.
  4. Remove relay module.

Refit

  1. Position relay module and connect multiplugs.
  2. Secure relay module to mounting bracket.
  3. Position fuse box and tighten bolts.
  4. Connect battery earth lead.
