ALTERNATOR -’K’ SERIES WITH AIR CONDITIONING

Service repair no - 86.10.02/20

Remove

  1. Disconnect battery earth lead.
  2. Remove alternator drive belt. See this section.
  3. Remove cooling fan motor. See COOLING SYSTEM - ’K’ SERIES, Repairs.

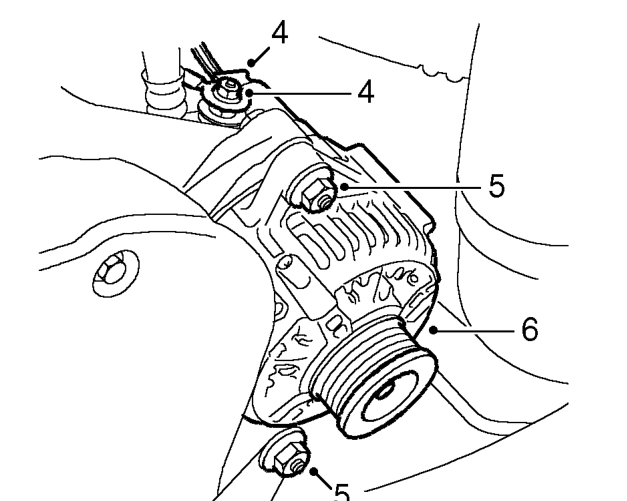

Alternator -’k’ series with air conditioning – Remove cooling fan motor. See COOLING SYSTEM - ’K’ SERIES, Repairs.
  1. Disconnect multiplug from alternator. Remove nut and disconnect lead from alternator
  2. Remove upper and lower mounting bolts from alternator.
  3. Gently tap alternator on rear of lower lug to free slip bush, release alternator from mounting and remove from vehicle.

Refit

  1. Position alternator to mounting.
  2. Fit mounting bolts and tighten to 45 Nm.
  3. Connect battery lead to alternator and tighten nut to 4 Nm.
  4. Connect multiplug to alternator.
  5. Fit cooling fan motor. See COOLING SYSTEM - ’K’ SERIES, Repairs.
  6. Fit alternator drive belt. See this section.
  7. Connect battery earth lead.
