COAXIAL LEAD - AERIAL - 5 DOOR

Service repair no - 86.50.24

Remove

  1. Remove aerial. See this section.
  2. Remove ’A’ post finisher. See BODY, Interior trim components.
  3. Remove sun visor. See BODY, Interior trim components.

NOTE: Original coaxial lead cannot be removed as it is part of the body harness.

Coaxial lead - aerial - 5 door – Remove sun visor. See BODY, Interior trim components.

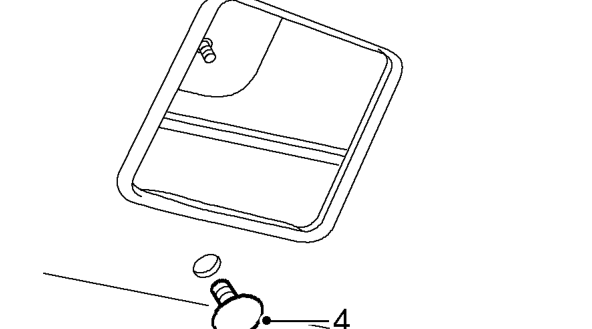

  1. Remove stud securing front edge of head lining.
Coaxial lead - aerial - 5 door – Remove stud securing front edge of head lining.

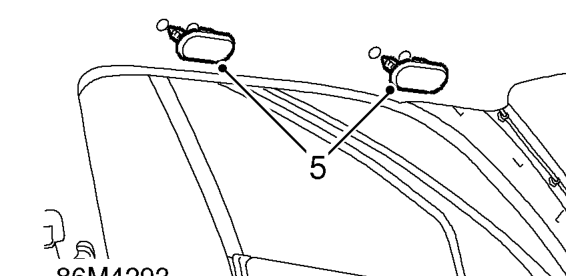

  1. Remove 2 grab handle blanks from head lining.
Coaxial lead - aerial - 5 door – Remove 2 grab handle blanks from head lining.

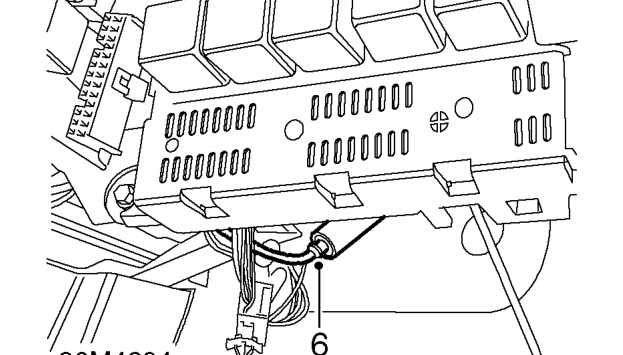

  1. Disconnect coaxial lead from link lead behind fuse box.

Refit

  1. Position NEW coaxial lead to roof panel.
  2. Align coaxial lead behind fascia and connect to link lead.
  3. Secure coaxial lead to harness with cable ties.
  4. Fit stud and grab handle blanks to head lining.
  5. Fit ’A’ post finisher. See BODY, Interior trim components.
  6. Fit sun visor. See BODY, Interior trim components.
  7. Fit aerial. See this section.
