Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Switch - heated rear screen

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Switch - heated rear screen
ElectricalSwitch - heated rear screen

SWITCH - HEATED REAR SCREEN

Service repair no - 86.65.36

Remove

  1. Remove radio. See this section.
Switch - heated rear screen – Remove radio. See this section.

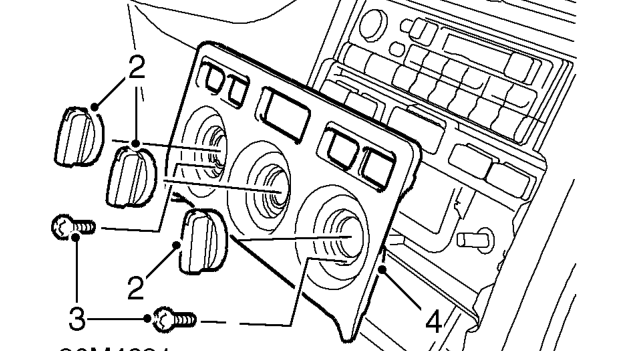

  1. Remove heater control knobs.
  2. Remove 2 screws from heater control face plate.
  3. Remove heater control face plate.
Switch - heated rear screen – Remove heater control face plate.

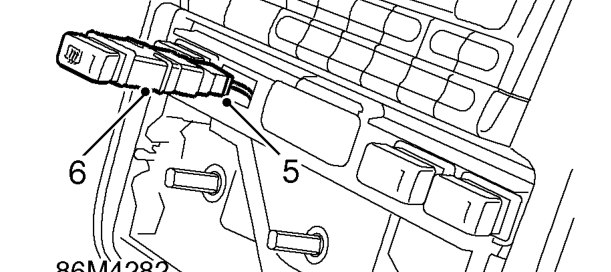

  1. Disconnect multiplug from heated rear screen switch.
  2. Remove switch.

Refit

  1. Fit switch and connect multiplug.
  2. Fit heater control, face plate and tighten screws.
  3. Fit heater control knobs.
  4. Fit radio. See this section.

SWITCH - HANDBRAKE WARNING

Service repair no - 86.65.45

Remove

  1. Remove rear console. See BODY, Interior trim components.
Switch - handbrake warning – Remove rear console. See BODY, Interior trim components.

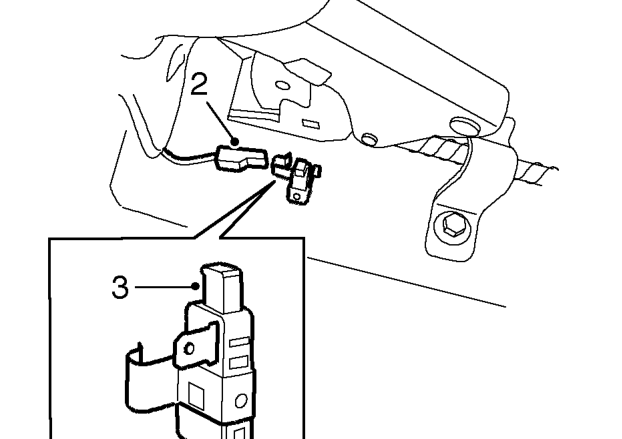

  1. Disconnect Lucar from handbrake warning switch.
  2. Release switch from handbrake.

Refit

  1. Fit switch to handbrake and connect Lucar.
  2. Fit rear console. See BODY, Interior trim components.
