Relay - starter

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Relay - starter
ElectricalRelay - starter

RELAY - STARTER

Service repair no - 86.60.10

Remove

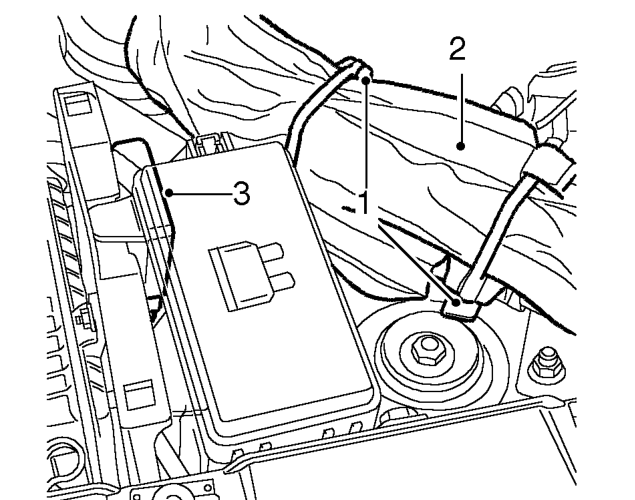

Relay - starter – Service repair no - 86.60.10
  1. Remove 2 straps securing vehicle jack.
  2. Remove jack.
  3. Remove relay from holder on battery tray.

Refit

  1. Fit relay.
  2. Position vehicle jack to its mounting.
  3. Fit securing straps.

SWITCH - STARTER

Service repair no - 86.65.02

WARNING: See GENERAL INFORMATION, SRS Precautions.

Remove

  1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.
  2. Remove steering column nacelle. See STEERING, Repairs.
Switch - starter – Remove steering column nacelle. See STEERING, Repairs.
  1. Disconnect multiplug from starter switch.
  2. Remove 2 screws securing starter switch to lock and remove switch.

Refit

  1. Fit starter switch and tighten retaining screws.
  2. Connect multiplug to starter switch.
  3. Fit steering column nacelle. See STEERING, Repairs.
  4. Connect battery, earth lead last.
