Land Rover Freelander Workshop Manual (1998-2000)19 · Steering
19 · Steering & suspension

Rack - power assisted steering (PAS)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Rack - power assisted steering (PAS)
SteeringRack - power assisted steering (PAS) · page 1 of 2

RACK - POWER ASSISTED STEERING (PAS)

Service repair no - 57.10.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Rack - power assisted steering (pas) – Remove road wheel(s).

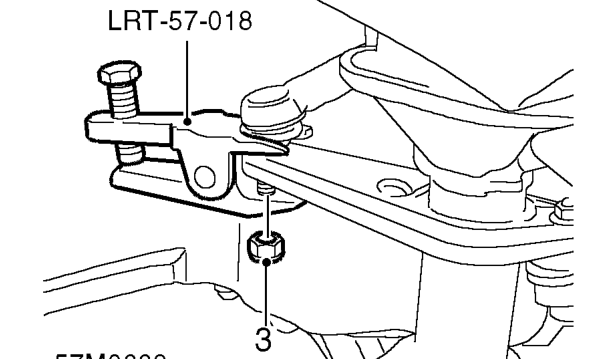

  1. Remove and discard nuts securing track rod ball joints to steering arms.
  2. Use LRT-57-018 to disconnect track rod ball joints.
Rack - power assisted steering (pas) – Use LRT-57-018 to disconnect track rod ball joints.

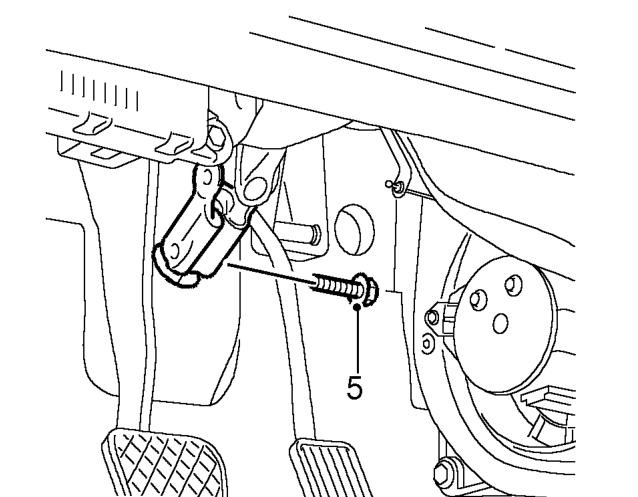

  1. Remove pinch bolt, securing steering column to PAS rack pinion.
Rack - power assisted steering (pas) – Remove pinch bolt, securing steering column to PAS rack pinion.

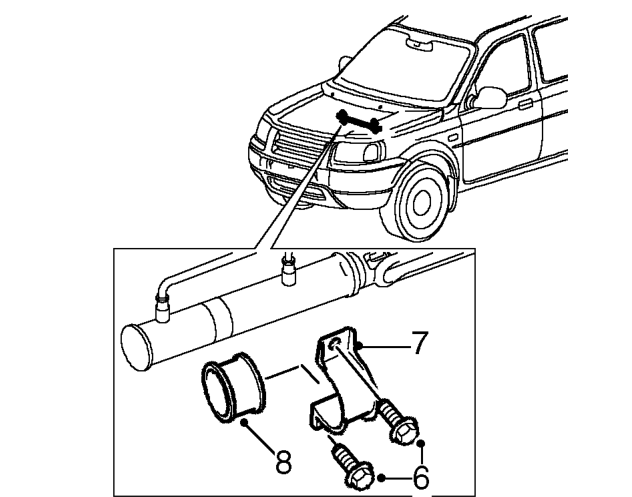

  1. Remove 2 bolts and washer securing PAS rack clamp to bulkhead.
  2. Remove PAS rack clamp.
  3. Remove rubber mount.
Rack - power assisted steering (pas) – Remove rubber mount.

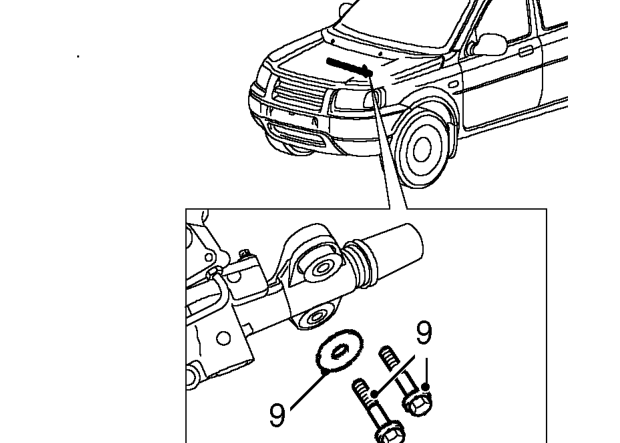

  1. Remove 2 bolts securing PAS rack mounting to bulkhead.
  2. Release PAS rack pinion from steering column.
