SteeringAll Models

All Models

All models

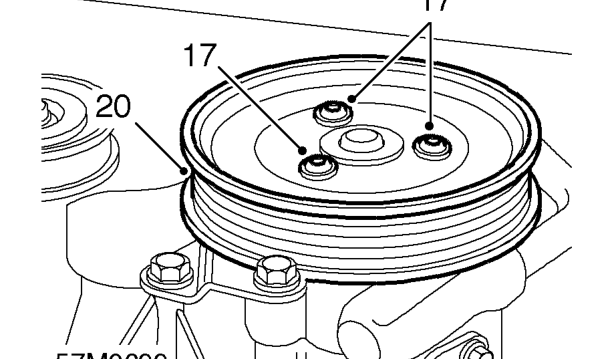

  1. Loosen 3 Torx screws securing PAS pump pulley.
  2. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  3. Remove 3 Torx screws securing PAS pump pulley.
  4. Remove PAS pump pulley.
  5. Position container to collect fluid loss from PAS system.

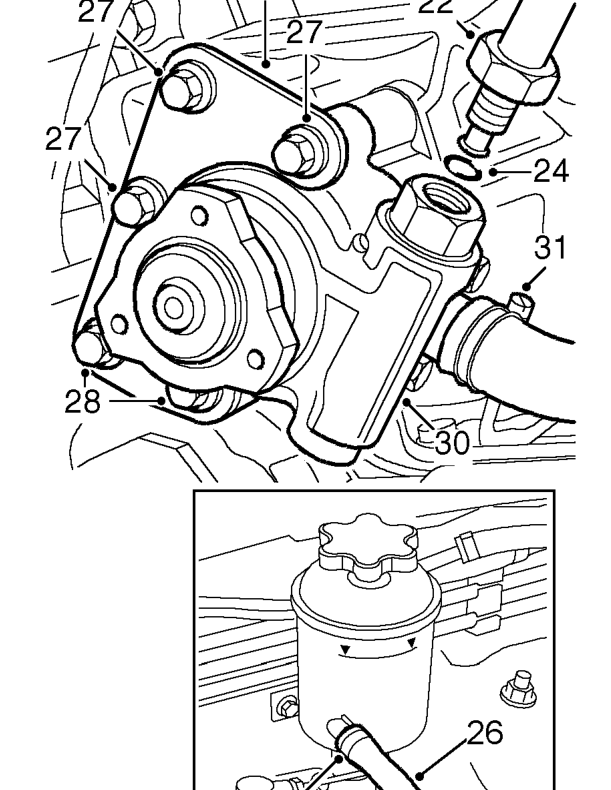

All models – Position container to collect fluid loss from PAS system.
  1. Loosen union securing high pressure fluid pipe to PAS pump.

CAUTION: To prevent damage to components, use two spanners when loosening or tightening unions.

  1. Disconnect high pressure pipe from pump.
  2. Remove and discard ’O’ ring.
  3. Remove clip securing fluid feed hose to PAS fluid reservoir.
  4. Disconnect feed hose from reservoir.

CAUTION: Plug the connections.

  1. Remove 3 short bolts securing support bracket to PAS pump and coolant pump.
  2. Remove 2 long bolts securing support bracket to PAS pump and coolant pump.
  3. Remove support bracket.
