SteeringModels with air conditioning

Models with air conditioning

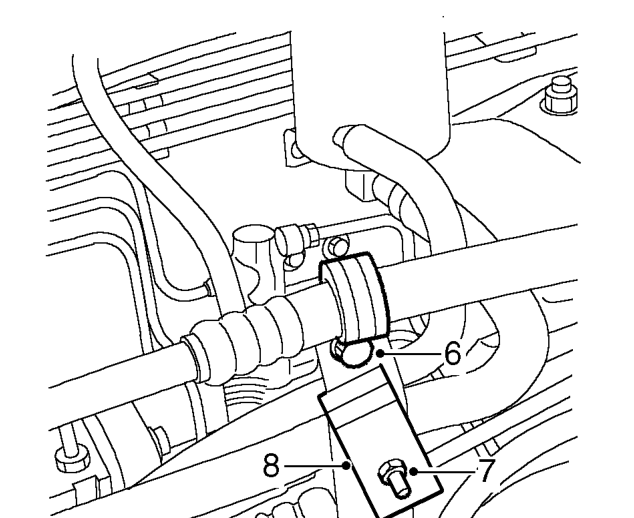

Models with air conditioning
  1. Remove bolt securing air conditioning hose clip to PAS hose support bracket.
  2. Remove nut and bolt securing PAS fluid hose clamp to support bracket.
  3. Remove clamps from hose.

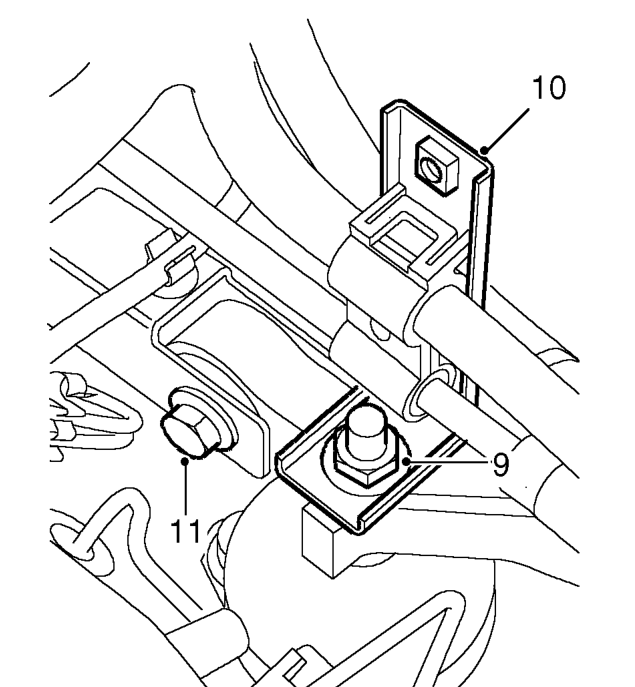

Models with air conditioning – Remove clamps from hose.
  1. Remove nut securing PAS hose support bracket to engine mounting stud.
  2. Remove PAS hose support bracket.
  3. Remove bolt securing engine upper tie bar to engine mounting bracket.

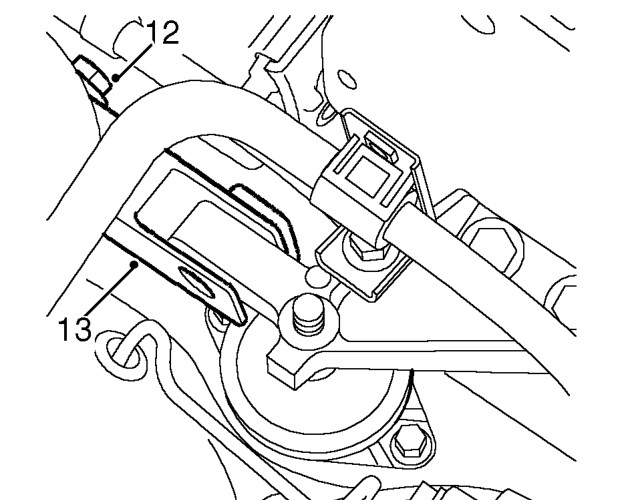

Models with air conditioning – Remove bolt securing engine upper tie bar to engine mounting bracket.
  1. Loosen bolt securing engine upper tie bar to bracket on body.
  2. Raise upper tie bar to clear engine mounting bracket.

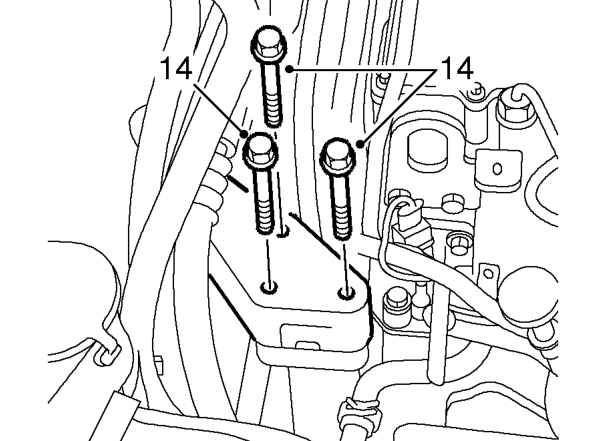

Models with air conditioning – Raise upper tie bar to clear engine mounting bracket.
  1. Remove 3 bolts securing engine mounting bracket to engine.
  2. Remove engine mounting bracket.
  3. Raise engine sufficient to allow access to PAS pump.
