TRACK ROD

Service repair no - 57.55.09

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. If necessary, position steering to gain access to track rod to PAS rack fixing bolt.

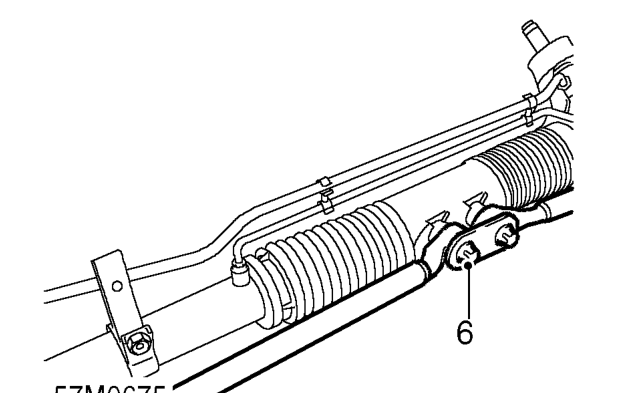

Track rod – If necessary, position steering to gain access to track rod to PAS rack fixing bolt.
  1. Remove and discard nut securing track rod end ball joint to steering arm.
  2. Use LRT-57-018 to disconnect track rod end ball joint from steering arm.

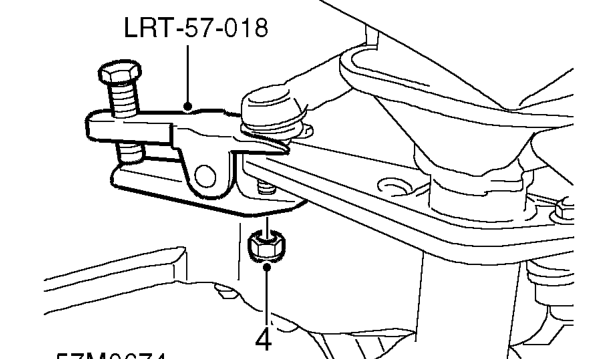

Track rod – Use LRT-57-018 to disconnect track rod end ball joint from steering arm.
  1. Remove Torx bolt securing track rod to PAS rack, discard Torx bolt.
  2. Remove spacer. Do not carry out further dismantling if component is removed for access only.

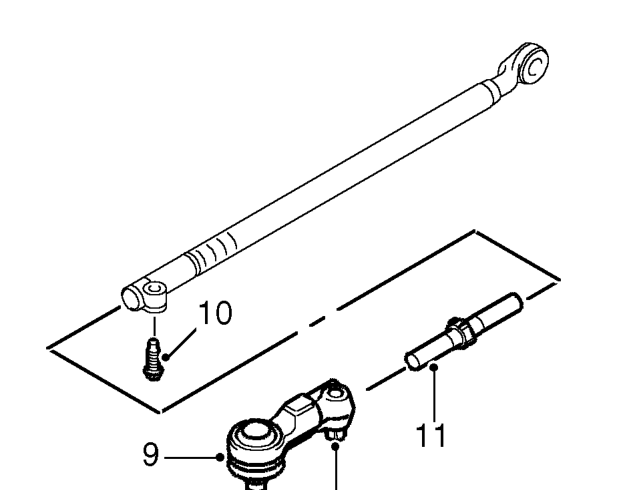

Track rod – Remove spacer. Do not carry out further dismantling if component is removed for access onl
  1. Hold track rod securely and loosen pinch bolt in track rod end.
  2. Remove track rod end and note number of turns for refit.
  3. Remove pinch bolt from track rod.
  4. Remove turnbuckle and note number of turns for refit.

NOTE: Turnbuckle has a LH thread into the track rod.
