Nacelle - steering column

Refit

1. Fit PAS fluid cooler.
2. Fit rubber sleeves to cooler.
3. Fit clamps and secure with bolts to brackets on front cross member. Tighten bolts to 10 Nm.
4. Fit rubber sleeve to pipes.
5. Fit clamp and secure pipe to front panel with bolt. Tighten bolt to 10 Nm.
6. Fit clamp and tighten nut and bolt securing PAS fluid pipe to bracket on RH engine mounting to 10 Nm.
7. Connect PAS fluid hose to reservoir and secure with clip.
8. Ensure PAS fluid pipe union is clean.
9. Lubricate NEW ’O’ ring with PAS fluid and fit seal to PAS fluid pipe.
10. Fit fluid pipe to PAS rack and tighten union nut to 22 Nm.
11. Fit clip to fluid pipe and fit bolt to secure bracket to PAS rack pinion housing. Tighten bolt to 8 Nm.
12. Fit PAS fluid pipe to remaining clips on PAS rack.
13. Fit front bumper. See BODY, Repairs.
14. Bleed PAS system. See Adjustments.

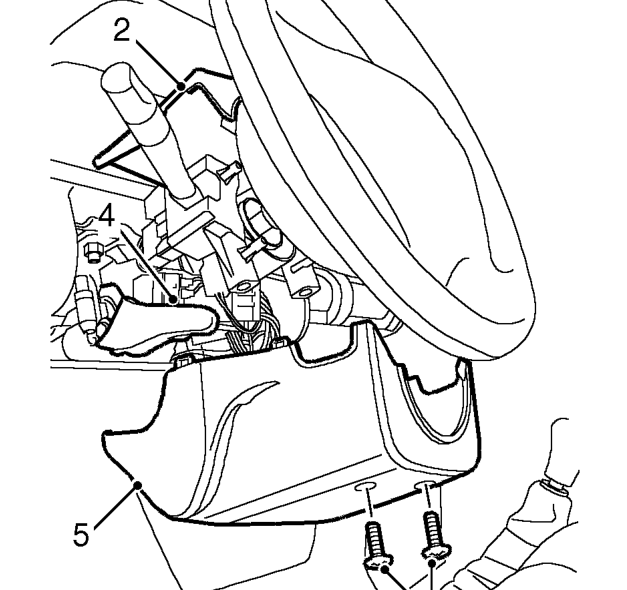

NACELLE - STEERING COLUMN

Service repair no - 57.40.29

Remove

1. Remove key from starter switch.

2. Carefully remove upper half of nacelle. Take care when releasing clips from lower half of nacelle.
3. Remove 2 screws securing lower half of nacelle to steering column.
4. Lower steering column tilt lever.
5. Carefully pull lower half of nacelle from retaining clip on column lock.

Refit

1. Ensure that steering column tilt lever is lowered.
2. Position lower half of nacelle and engage with clip on column lock.
3. Raise column tilt lever.
4. Fit and tighten 2 screws securing lower half of nacelle to steering column.
5. Fit upper half of nacelle and ensure that clips engage with lower half.
