COOLER - PAS FLUID

Service repair no - 57.15.11

Remove

  1. Remove front bumper. See BODY, Repairs.
  2. Position container beneath PAS rack.

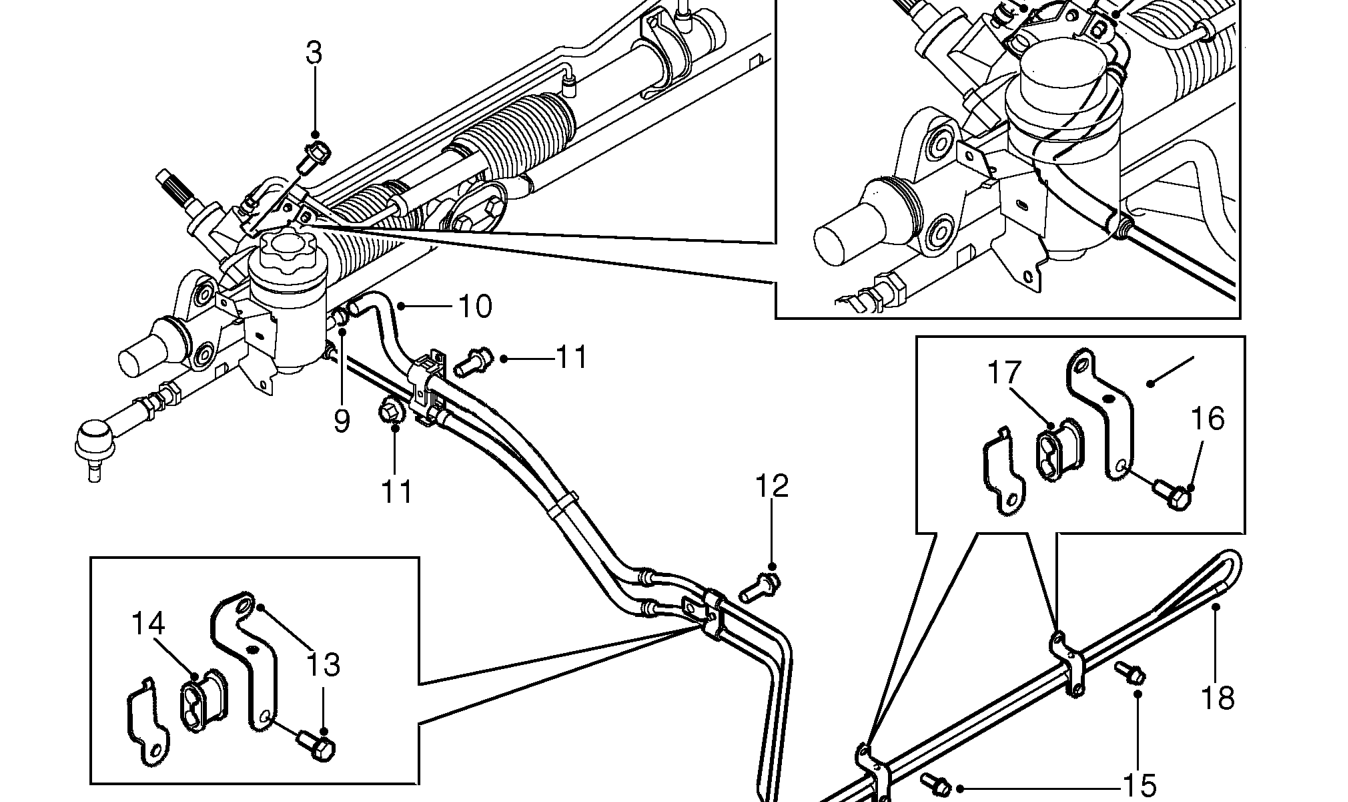

Cooler - pas fluid – Position container beneath PAS rack.
  1. Remove bolt securing PAS fluid pipe bracket to PAS rack pinion housing.
  2. Release clip from PAS fluid return pipe.
  3. Remove union nut and disconnect fluid return pipe from PAS rack.
  4. Remove and discard ’O’ ring.

CAUTION: Plug the connections.

  1. Release return pipe from clips on support bracket.
  2. Position container to collect fluid spillage from PAS fluid reservoir hose connection.
  3. Remove clip securing return hose to PAS fluid reservoir.
  4. Disconnect fluid hose from reservoir

CAUTION: Plug the connections.

  1. Remove nut and bolt securing PAS fluid pipes to bracket on RH engine mounting.
  2. Remove bolt securing PAS fluid pipe to bracket at RH side of front panel.
  3. Remove bolt and clamp.
  4. Remove rubber sleeve.
  5. Remove 2 bolts securing PAS fluid cooler to brackets on front cross member.
  6. Remove 2 bolts and clamps from fluid cooler.
  7. Remove rubber sleeve’s from cooler.
  8. Remove PAS fluid cooler.
