Land Rover Freelander Workshop Manual (1998-2000)19 · Steering
19 · Steering & suspension

Pump - power assisted steering - L Series

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Pump - power assisted steering - L Series
SteeringPump - power assisted steering - L Series

Refit

  1. Ensure PAS pump belt pulleys are clean and damage free.
  2. Fit NEW drive belt.

NOTE: Check belt is correctly located in pulley grooves.

  1. Use a 13mm spanner and release tension from retaining pin.
  2. Remove retaining pin and lower tensioner pulley onto PAS belt.
  3. Fit RH splash shield and secure with bolts.

PUMP - POWER ASSISTED STEERING - L SERIES

Service repair no - 57.20.14 Models without air conditioning Service repair no - 57.20.14/20 Models with air conditioning

Remove

  1. Remove underbelly panel. See BODY, Exterior fittings.
  2. Remove engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
  3. Use a jack to support the engine under sump.

CAUTION: Place block of wood on jack to protect sump.

Models without air conditioning

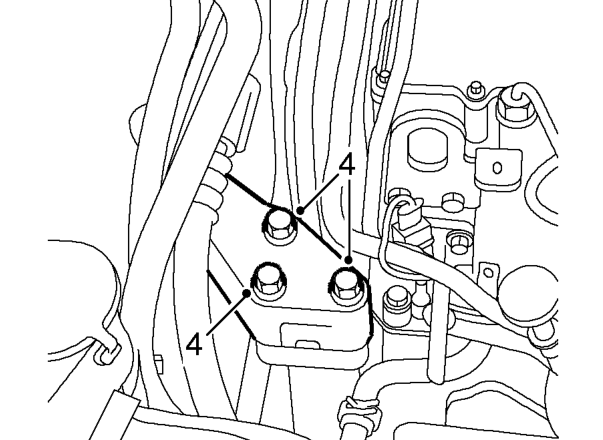

Models without air conditioning – Use a jack to support the engine under sump.
  1. Remove 3 bolts securing RH engine mounting bracket to engine.
  2. Lower engine sufficient to allow access to PAS pump.
