HARNESS - FASCIA

Service repair no - 86.70.10

Remove

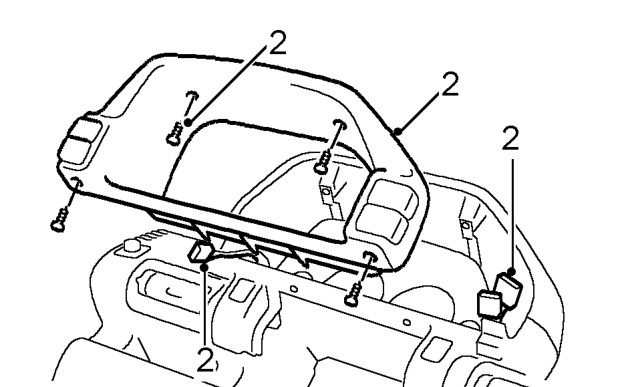

  1. Remove fascia. See BODY, Interior trim components.
Harness - fascia – Remove fascia. See BODY, Interior trim components.

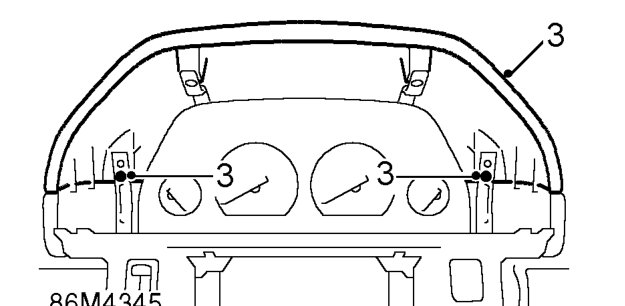

  1. Remove 4 screws, disconnect 3 multiplugs from switches, and remove instrument bezel finisher.
Harness - fascia – Remove 4 screws, disconnect 3 multiplugs from switches, and remove instrument bezel finish

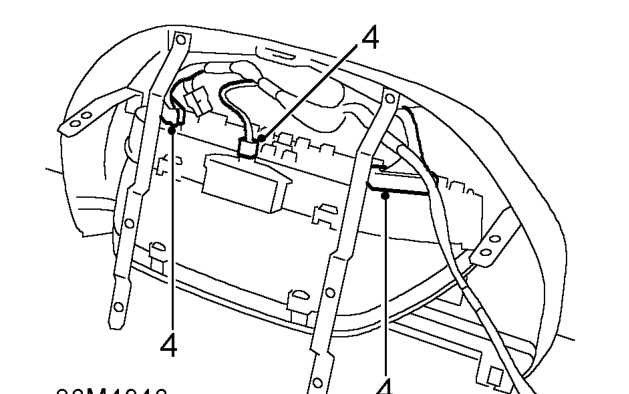

  1. Remove 2 screws from instrument upper cover and remove cover.
Harness - fascia – Remove 2 screws from instrument upper cover and remove cover.

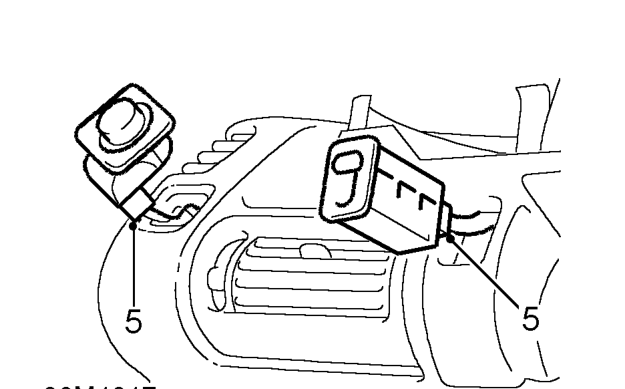

  1. Disconnect 3 multiplugs from instrument pack.
Harness - fascia – Disconnect 3 multiplugs from instrument pack.
  1. Disconnect multiplugs from mirror switch and headlamp leveling switch.
