Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Harness - fascia (page 2 of 2)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
ElectricalHarness - fascia · page 2 of 2
Diagram

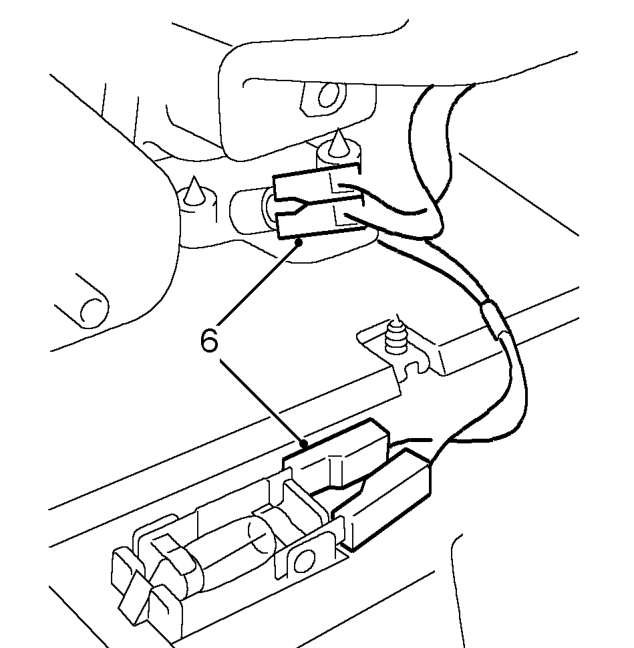

  1. Disconnect 4 Lucars from glove box light and switch.
Disconnect 4 Lucars from glove box light and switch.

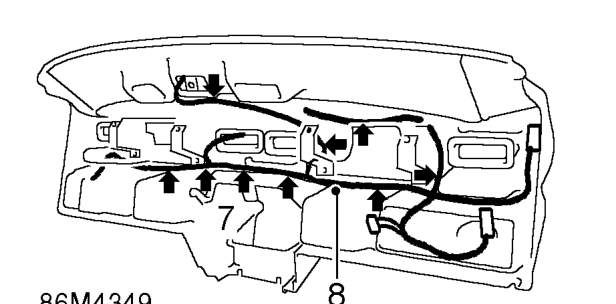

  1. Release harness from 9 clips.
  2. Feed harness through fascia and remove harness.

Refit

  1. Position harness and secure harness in clips.
  2. Feed harness through fascia and connect multiplugs to instrument pack, mirror switch and headlamp levelling switch.
  3. Position upper cover and tighten screws.
  4. Connect Lucars to glove box light and switch.
  5. Position instrument bezel finisher, connect multiplugs and secure retaining screws.
  6. Fit fascia. See BODY, Interior trim components.
