CENTRAL CONTROL UNIT - (CCU)

Service repair no - 86.55.75

Remove

  1. Disconnect battery earth lead.

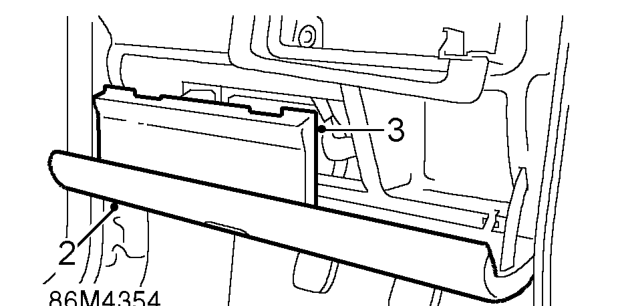

Central control unit - (ccu) – Disconnect battery earth lead.
  1. Open driver’s side glove box
  2. Remove fuse box cover.

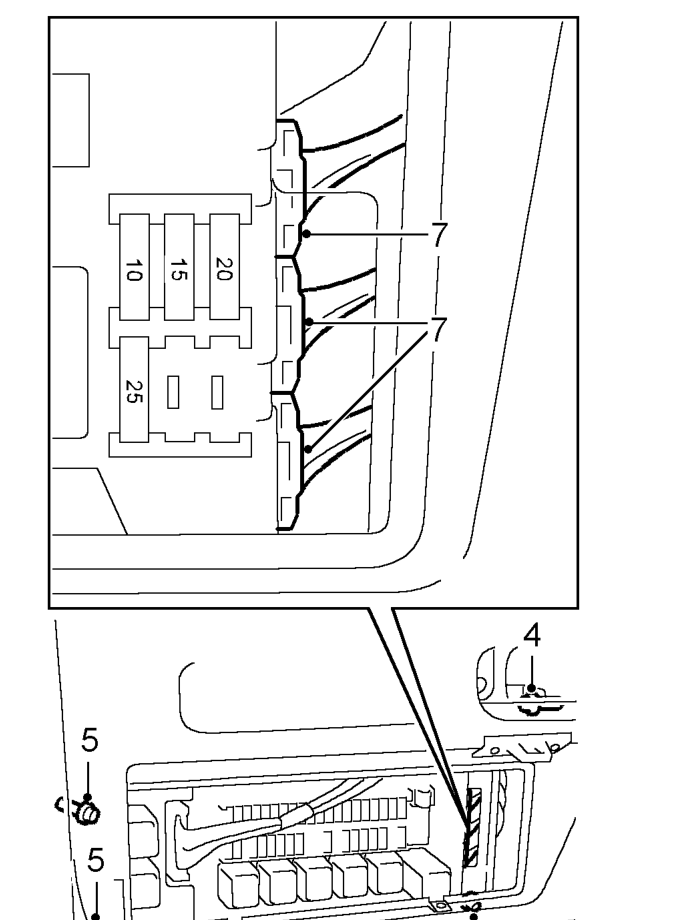

Central control unit - (ccu) – Remove fuse box cover.
  1. Remove bolt securing fuse box mounting plate to steering column bracket.
  2. Remove 2 bolts securing mounting plate to body.
  3. Remove 2 bolts securing fuse box to mounting plate.
  4. Disconnect 3 multiplugs from CCU in rear fuse box.

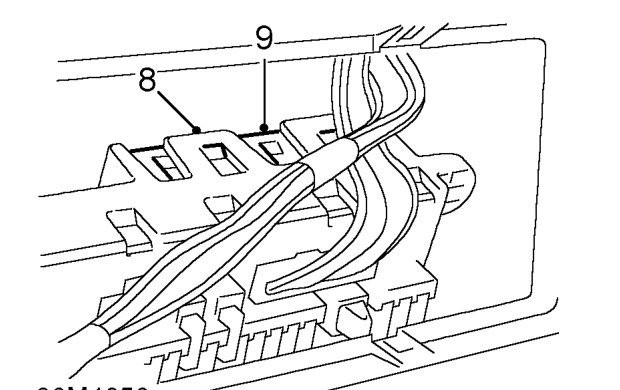

Central control unit - (ccu) – Disconnect 3 multiplugs from CCU in rear fuse box.
  1. Manoeuvre fuse box to gain access to CCU and release retaining clips.
  2. Remove CCU.

Refit

  1. Position CCU and secure in clips.
  2. Align fuse box into position with mounting plate.
  3. Connect multiplugs to CCU.
  4. Fit bolts securing fuse box to mounting bracket and tighten to 8 Nm.
  5. Position mounting plate and tighten bolts to 8 Nm.
  6. Fit fuse box cover.
  7. Close glove box.
  8. Connect battery earth lead.
