AERIAL - 5 DOOR

Service repair no - 86.50.18

Remove

Aerial - 5 door – Service repair no - 86.50.18

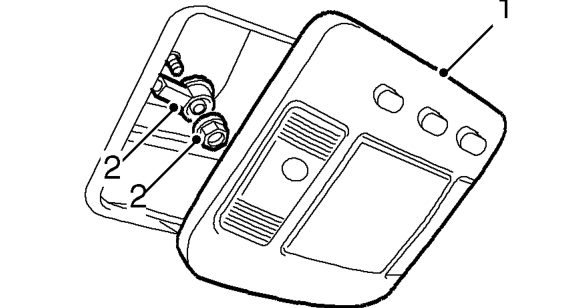

  1. Release roof lamp from headlining.
  2. Remove nut securing coaxial cable to aerial base.
Aerial - 5 door – Remove nut securing coaxial cable to aerial base.

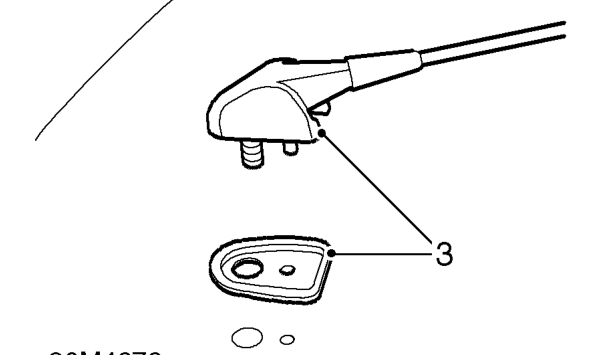

  1. Remove aerial base from roof panel and remove rubber seal.

Refit

  1. Fit rubber seal and position aerial base to roof panel.
  2. Connect coaxial cable and tighten nut.
  3. Position and secure roof lamp.

COAXIAL LEAD - AERIAL - 3 DOOR

Service repair no - 86.50.24

Remove

  1. Remove aerial. See this section.

NOTE: Original coaxial lead cannot be removed as it is part of the body harness.

Coaxial lead - aerial - 3 door – Remove aerial. See this section.

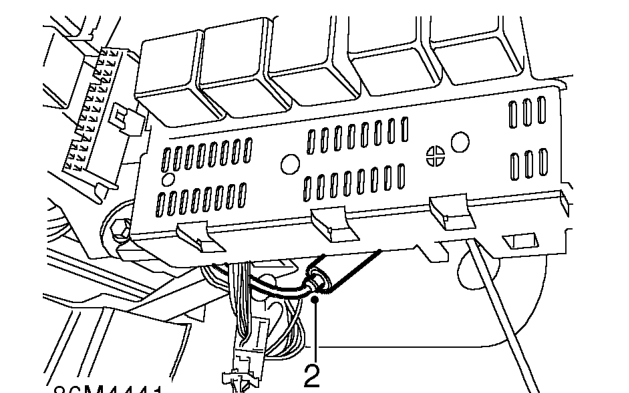

  1. Disconnect coaxial lead from link lead behind fuse box.

Refit

  1. Position NEW coaxial lead to roof panel.
  2. Align coaxial lead behind fascia and connect to link lead.
  3. Secure coaxial lead to harness with cable ties.
  4. Fit aerial. See this section.
