Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Switch - hazard warning lights

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Switch - hazard warning lights
ElectricalSwitch - hazard warning lights

SWITCH - HAZARD WARNING LIGHTS

Service repair no - 86.65.50

Remove

  1. Remove radio. See this section.

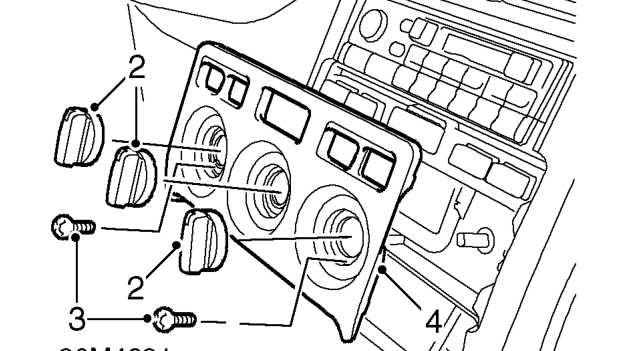

Switch - hazard warning lights – Remove radio. See this section.
  1. Remove heater control knobs.
  2. Remove 2 screws from heater control face plate.
  3. Remove face plate.

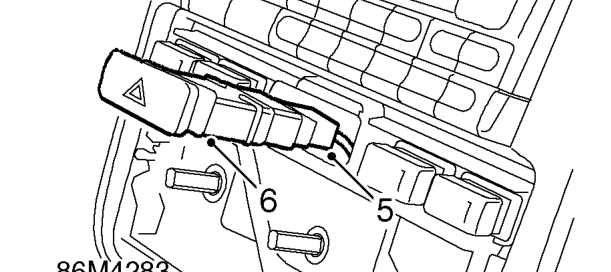

Switch - hazard warning lights – Remove face plate.
  1. Disconnect multiplug from hazard warning light, switch.
  2. Remove switch.

Refit

  1. Fit switch and connect multiplug.
  2. Fit heater control, face plate and tighten screws.
  3. Fit heater control knobs.
  4. Fit radio. See this section.

SWITCH - INDICATOR AND LIGHTS

Service repair no - 86.65.55

Remove

  1. Remove steering column nacelle. See STEERING, Repairs.

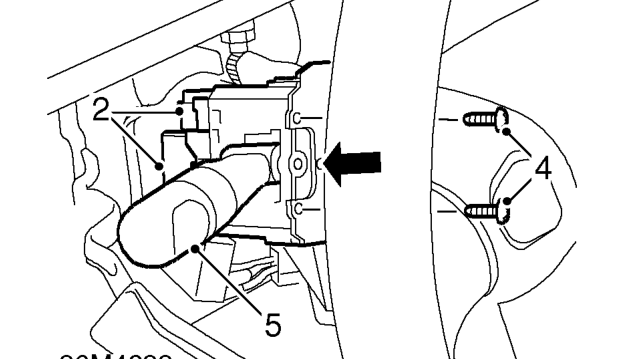

Switch - indicator and lights – Remove steering column nacelle. See STEERING, Repairs.
  1. Disconnect 2 multiplugs from indicator and light switch.
  2. Rotate steering wheel to access switch securing screws.
  3. Remove 2 screws securing switch.
  4. Depress retaining tag and remove switch

Refit

  1. Fit switch and secure with screws.
  2. Connect multiplugs to switch.
  3. Fit steering column nacelle. See STEERING, Repairs.
