BATTERY CARRIER

Service repair no - 86.15.11

Remove

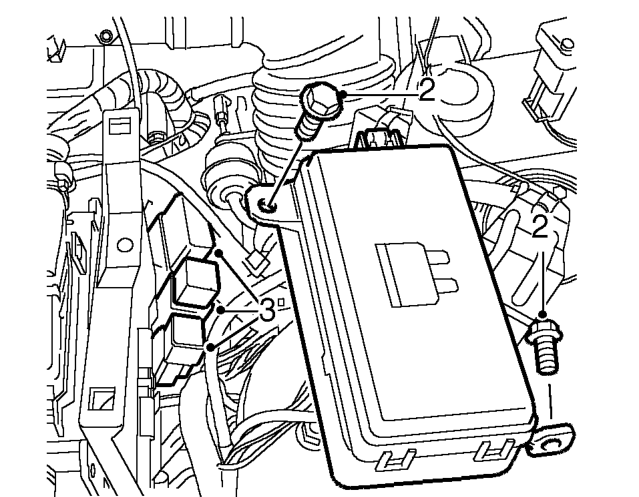

  1. Remove battery. See this section.
Battery carrier – Remove battery. See this section.
  1. Remove 2 bolts and move engine compartment fuse box aside.

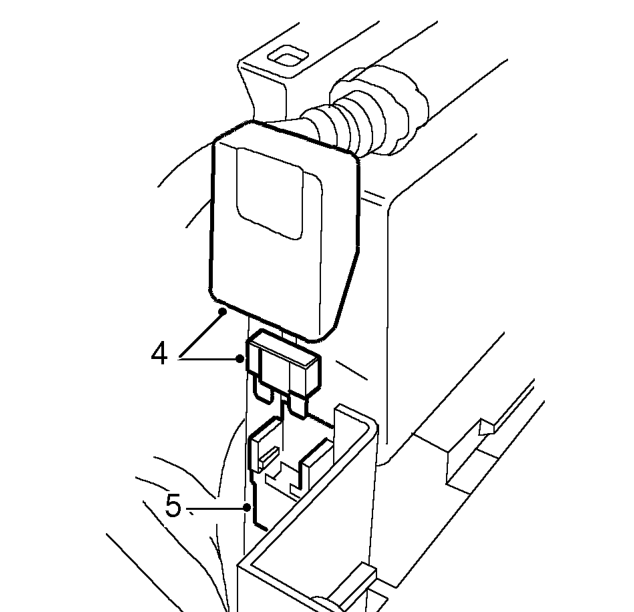

  2. Release 3 relay holders and relay module from battery carrier.
Battery carrier – Release 3 relay holders and relay module from battery carrier.
  1. Remove cover and 70 ampere fuse from battery carrier.
  2. Release fuse holder from battery carrier
  3. Release clip securing engine harness to battery carrier.
Battery carrier – Release clip securing engine harness to battery carrier.

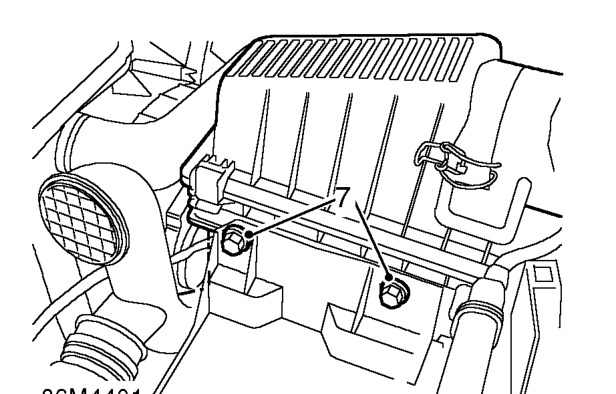

  1. Remove 2 bolts and release air cleaner.
Battery carrier – Remove 2 bolts and release air cleaner.

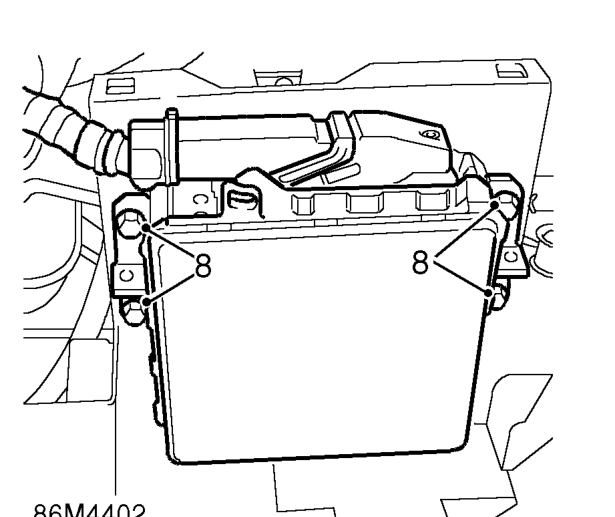

  1. Remove 4 bolts and move ECM aside.
Battery carrier – Remove 4 bolts and move ECM aside.

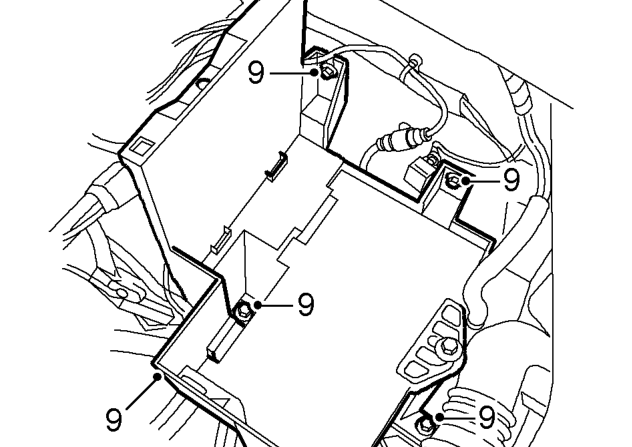

  1. Remove 4 bolts and remove battery carrier.
