Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Speaker - tweeter - front

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Speaker - tweeter - front
ElectricalSpeaker - tweeter - front

SPEAKER - TWEETER - FRONT

Service repair no - 86.50.34

Remove

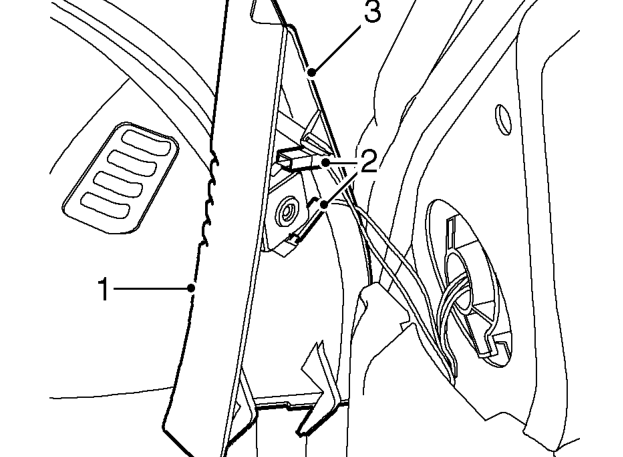

Speaker - tweeter - front – Service repair no - 86.50.34
  1. Release cheater panel from door.
  2. Disconnect Lucars from tweeter speaker.
  3. Remove cheater panel.

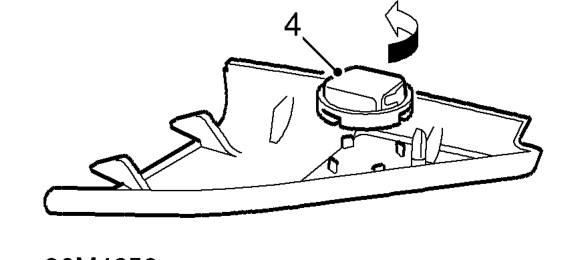

Speaker - tweeter - front – Remove cheater panel.
  1. Remove tweeter speaker.

Refit

  1. Fit tweeter speaker to cheater panel, and connect Lucars.
  2. Fit cheater panel to door.

COAXIAL LINK LEAD

Service repair no - 86.50.65

Remove

  1. Remove radio. See this section.

NOTE: Original coaxial link lead cannot be removed as it is part of the main harness.

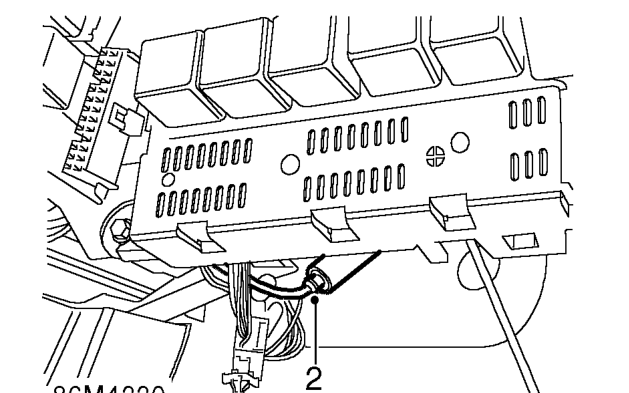

Coaxial link lead – Remove radio. See this section.
  1. Disconnect coaxial link lead from aerial lead.

Refit

  1. Fit replacement extension lead and route to radio position.

WARNING: Ensure link lead does not foul control pedals or steering column.

  1. Secure lead as necessary with cable ties.
  2. Connect link lead to aerial lead.
  3. Fit radio. See this section.
