LAMP - LOAD SPACE

Service repair no - 86.45.16

Remove

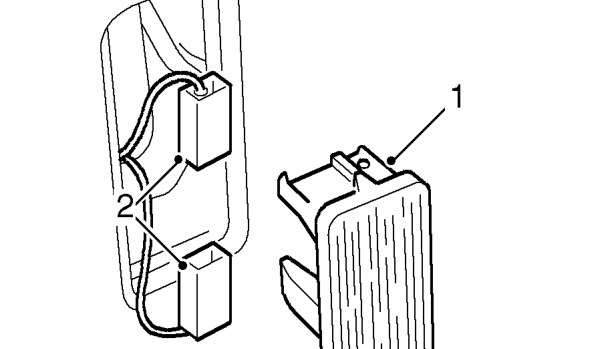

Lamp - load space – Service repair no - 86.45.16
  1. Release lamp from trim casing.
  2. Disconnect Lucars and remove lamp.

Refit

  1. Position lamp and connect Lucars.
  2. Secure lamp to trim casing.

RADIO

Service repair no - 86.50.03

Remove

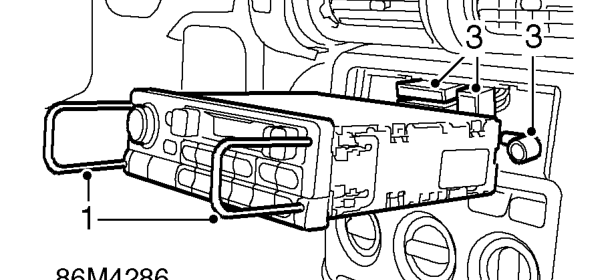

Radio – Service repair no - 86.50.03
  1. Fit radio removal tools SMD 4091 to retaining clips.
  2. Pull on tool to release radio from fascia.
  3. Disconnect multiplugs and aerial lead.
  4. Remove radio.

Refit

  1. Position radio to aperture, connect multiplugs and aerial lead.
  2. Slide radio into fascia until retaining clips engage.
  3. Enter security code and check radio for correct operation.
