Harness - rear door

HARNESS - REAR DOOR

Service repair no - 86.70.66

Remove

1. Disconnect battery earth lead.
2. Remove rear door water shedder. See BODY, Doors.

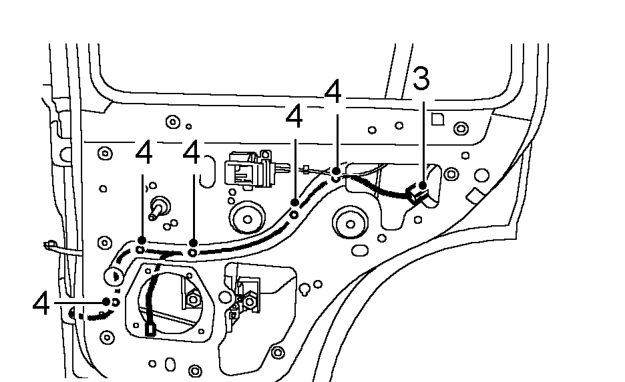

3. Release multiplug from door latch.
4. Release 5 clips securing door harness to door.

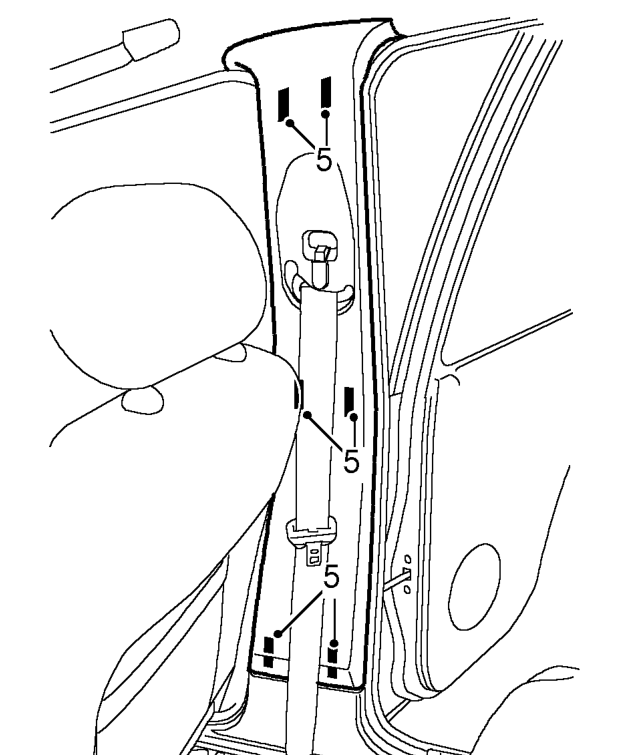

5. Release 6 clips securing B/C’ upper finisher, position finisher aside.

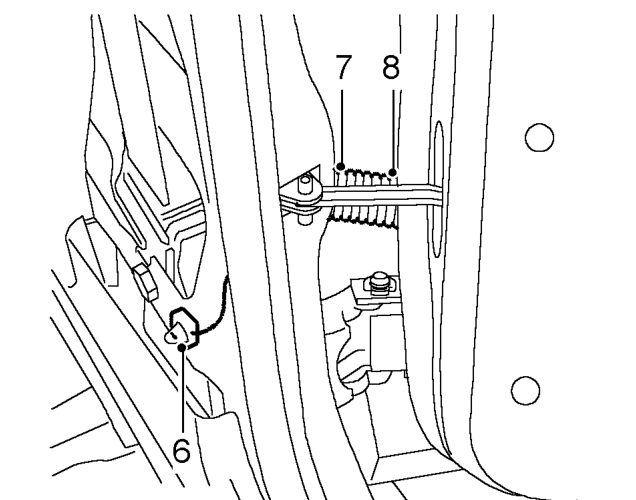

6. Release multiplug from location at base of B/C’ post and disconnect multiplug.
7. Release sheath from B/C’ post, and pull harness from B/C’ post.
8. Release sheath from front edge of door and pull harness into door.
9. Remove door harness.

Refit

1. Position harness in door and secure retaining clips.
2. Connect multiplug to door latch.
3. Feed harness through front edge of door and secure sheath to door.
4. Feed harness into B/C’ post, and secure sheath to B/C’ post.
5. Connect and secure multiplug at base of B/C’ post.
6. Position B/C’ post upper finisher and secure with retaining clips.
7. Fit water shedder. See BODY, Doors.
8. Connect battery earth lead.
