Starter motor - ’l’ series

STARTER MOTOR - ’L’ SERIES

Service repair no - 86.60.01

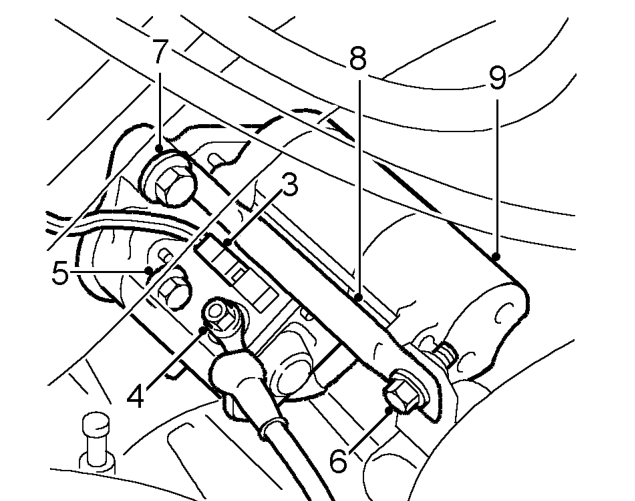

Remove

1. Disconnect battery earth lead.
2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

3. Disconnect Lucar from starter solenoid.
4. Remove nut and disconnect battery lead from starter solenoid.
5. Remove lower bolt securing starter motor.
6. Remove bolt securing engine steady bar to gearbox mounting.
7. Remove upper bolt securing starter motor.
8. Remove engine steady bar.
9. Remove starter motor.

Refit

1. Clean mating faces of starter motor and gearbox.
2. Fit starter motor and fit lower bolt but do not tighten at this stage.
3. Fit engine steady bar and fit bolt to gearbox mounting.
4. Fit starter motor upper bolt.
5. Tighten both upper and lower starter motor bolts to 85 Nm.
6. Connect battery cable to starter solenoid, fit nut and tighten to 4 Nm.
7. Connect Lucar to solenoid.
8. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
9. Connect battery earth lead.
