SENSOR - ENGINE COOLANT TEMPERATURE (ECT)

Service repair no - 18.30.10

Remove

  1. Disconnect battery earth lead.
  2. Remove engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
  3. Position absorbent cloth around ECT sensor to absorb any coolant spillage.

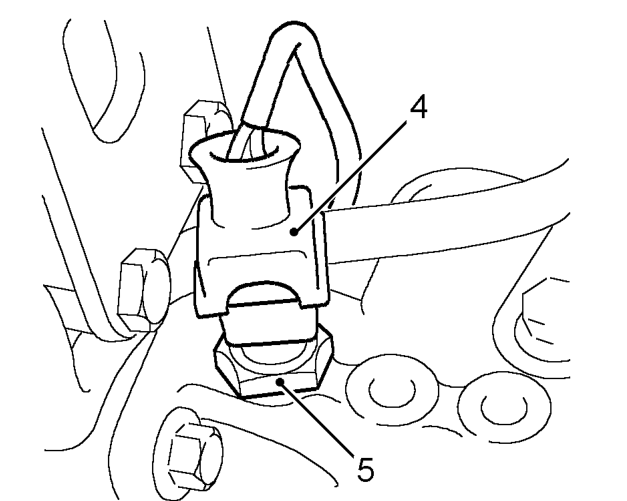

Sensor - engine coolant temperature (ect) – Position absorbent cloth around ECT sensor to absorb any coolant spillage.
  1. Disconnect multiplug from ECT.
  2. Remove ECT sensor.

Refit

  1. Clean threads of ECT sensor and apply Loctite 577.
  2. Fit ECT sensor and tighten to 5 Nm.
  3. Connect multiplug to ECT sensor.
  4. Fit engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
  5. Check and if necessary top up cooling system. See INFORMATION, Capacities, fluids and lubricants.
  6. Connect battery earth lead.

SOLENOID - FUEL CUT OFF

Service repair no - 18.30.07

Remove

  1. Disconnect battery earth lead.
  2. Remove engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.

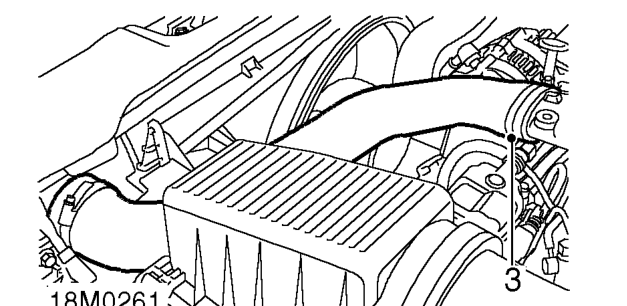

Solenoid - fuel cut off – Remove engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
  1. Release clip and disconnct air hose from plenum chamber.
  2. Clean top of FIP around solenoid.
  3. Position absorbent cloth around solenoid to absorb any fuel spillage.
